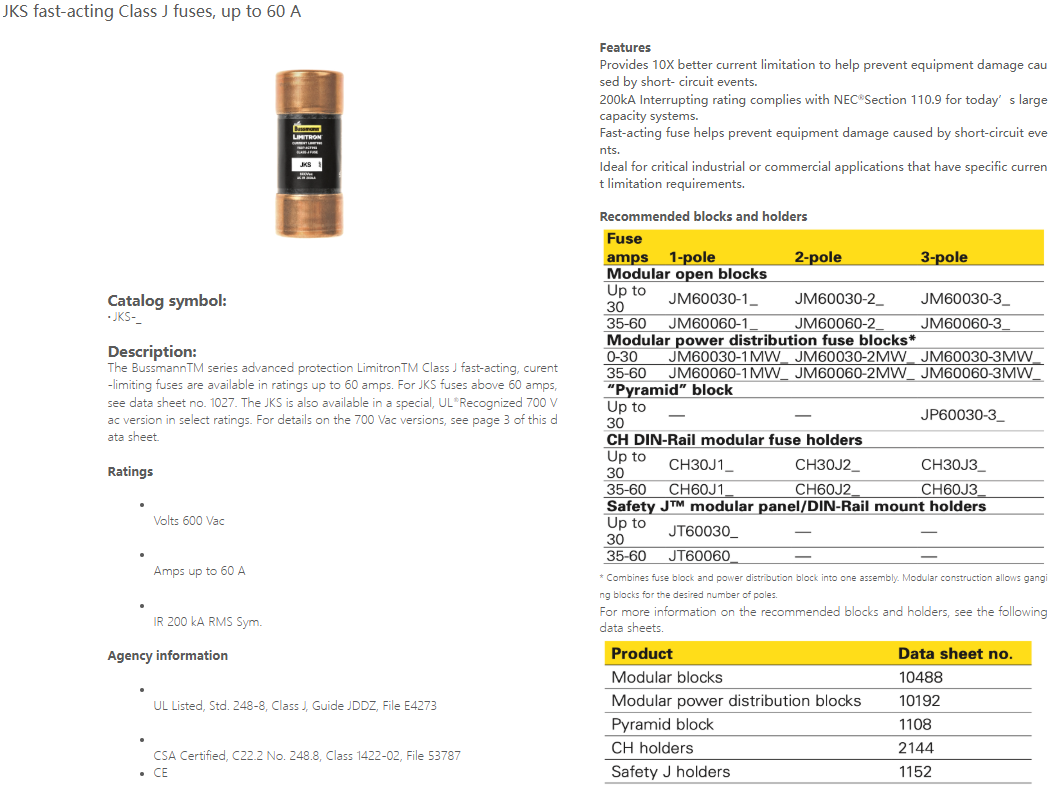

Catalog symbol:

• JKS-_-700

Description:

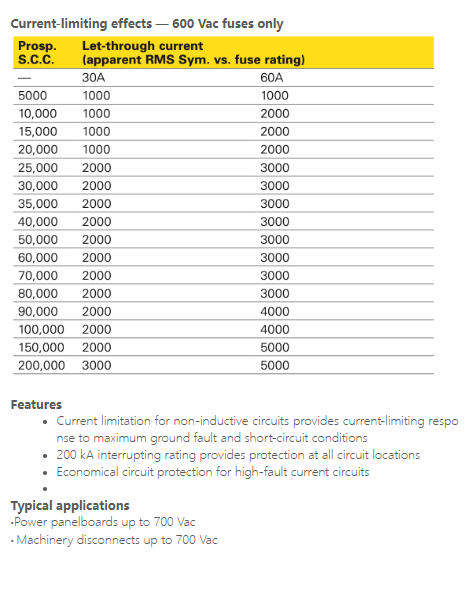

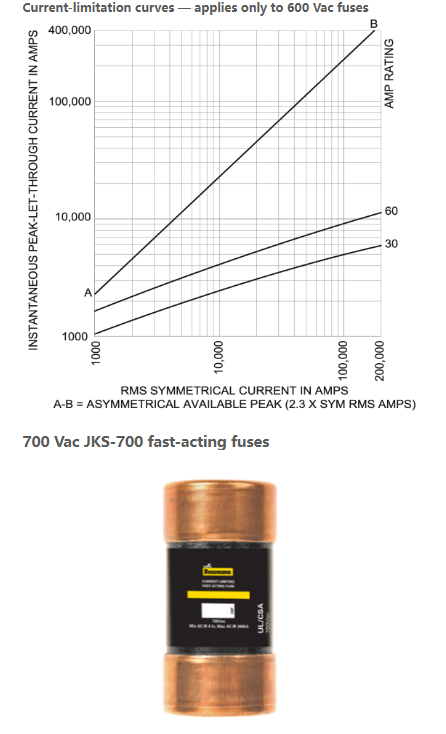

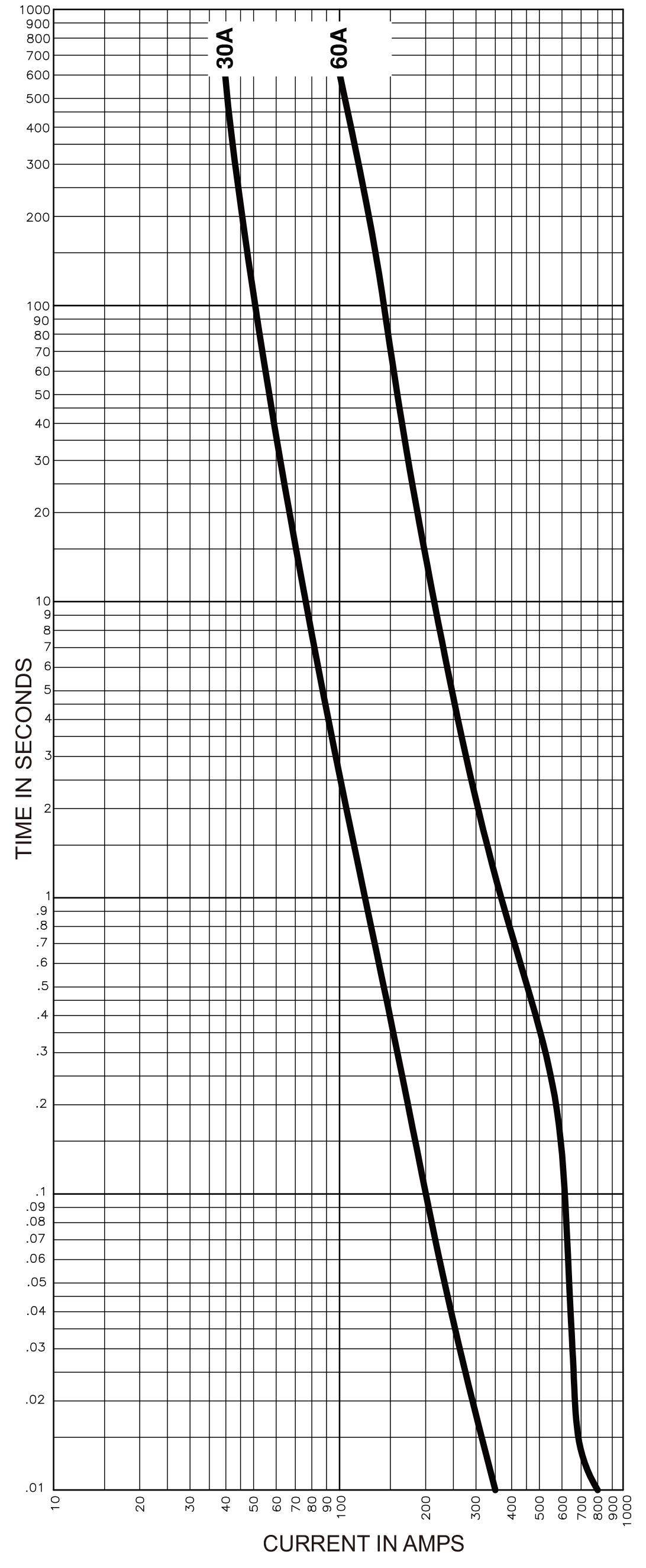

The JKS-700 is a fast-acting, current-limiting fuse that is UL Recognized and has CSA Component Acceptance for applications up to 700 Vac. The JKS-700 is available in ratings up to 60 amps with the same dimensions as a standard Class J fuses; but its voltage rating places it outside the standard Class J fuse class. The time- current curves shown for the 600 Vac fuses apply to the 700 Vac versions, but the current let-through curves do not.

Bussmann recommends the JM70100 modular fuse block and the JM70100-MW power distribution fuse block for the 30 amp case size JKS-700 fuses.

Ratings

• Volts 700 Vac (or less)

• Amps 25-60 A

• IR

• Minimum 6In

• 200 kA RMS Sym.





Operating class aR

Agency information

• UL Recognized, 248-13 Semiconductor Fuses, File E56412

• CSA Component Acceptance, C22.2 No 248.13 Semiconductor Fuses, Class 1422-30
