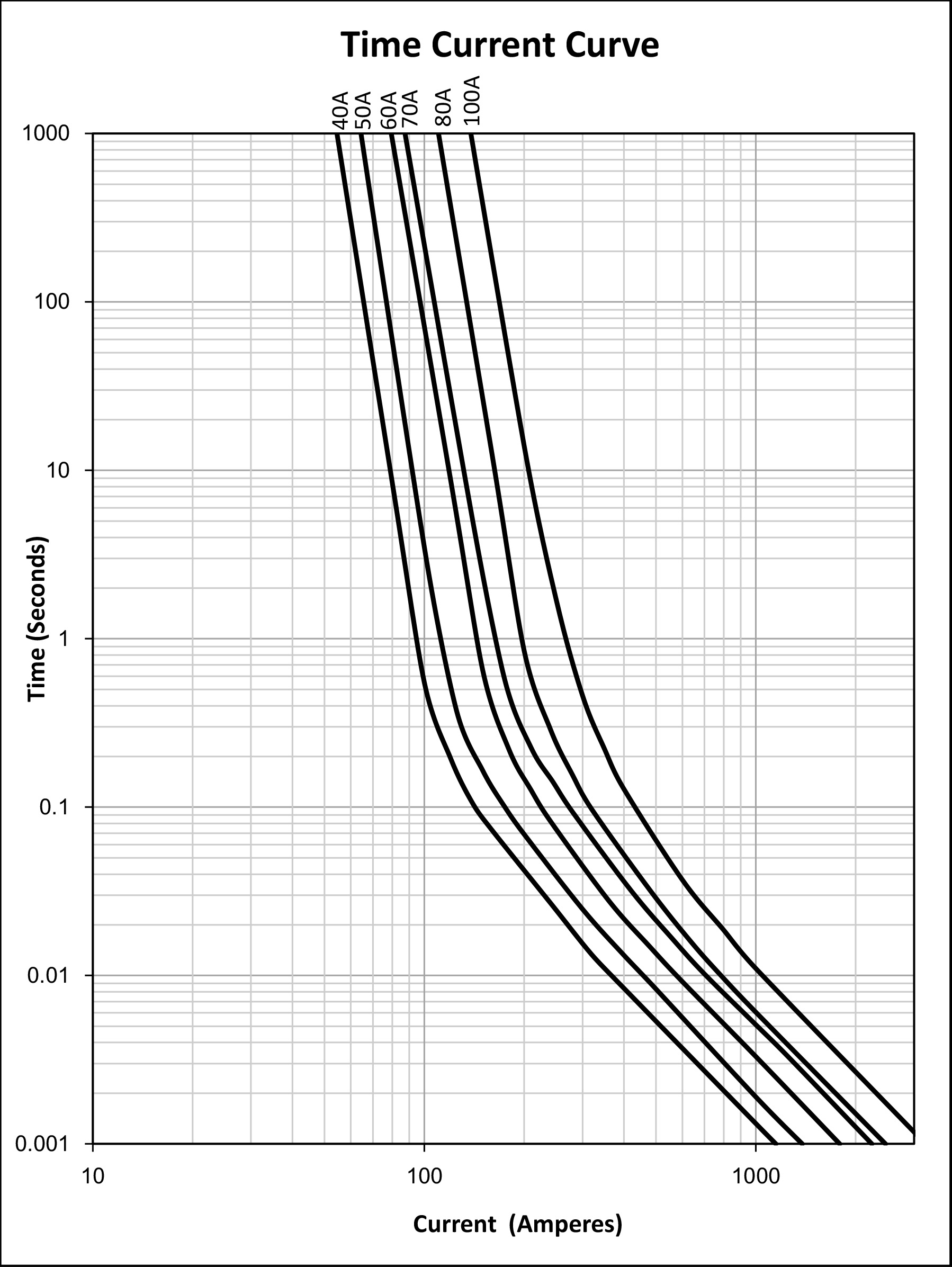

Time-Current Curves

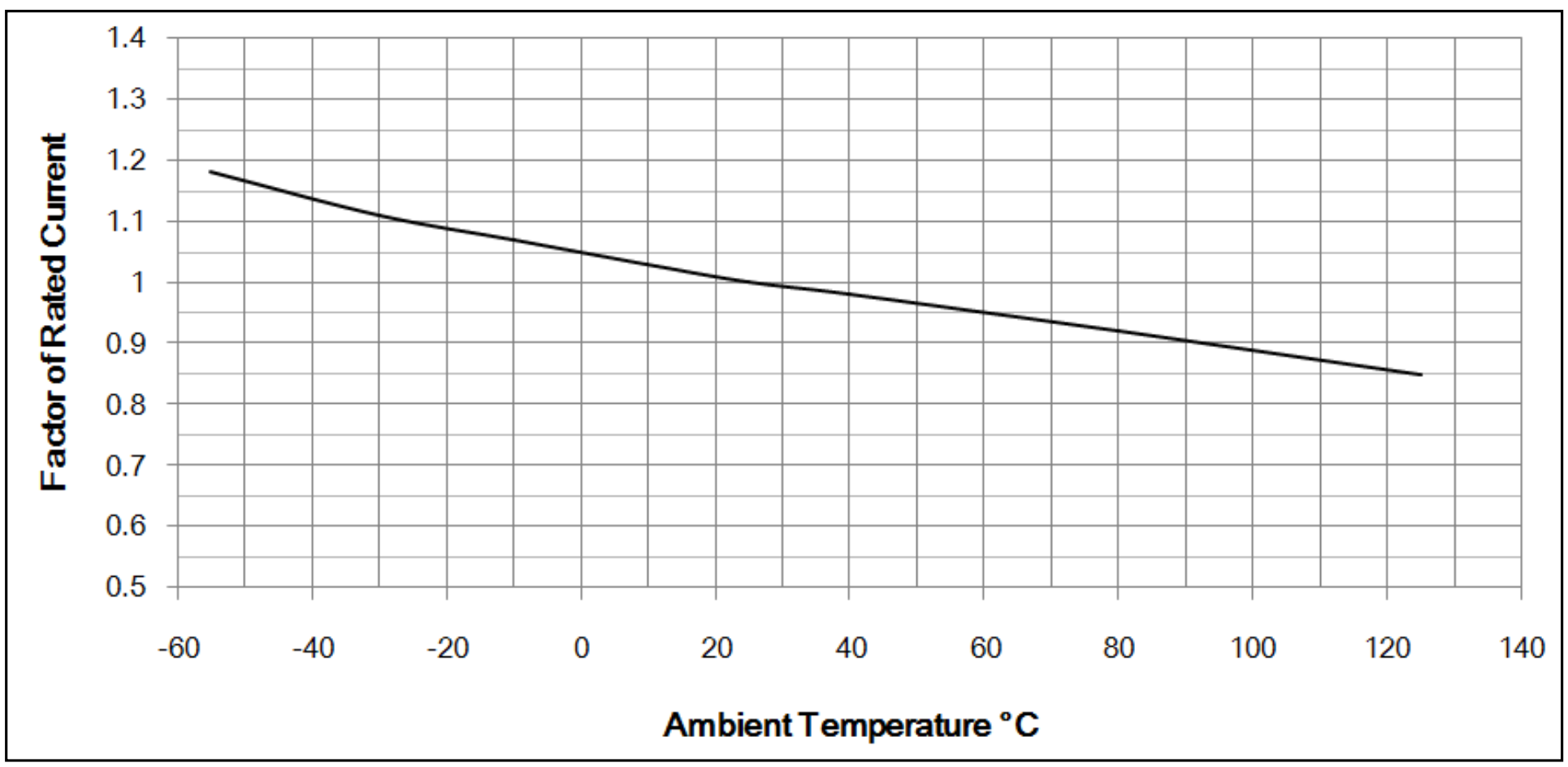

Temperature rerating curve

 Normal Operating Temperature: 25°C±2°C
 Operating Temperature: -55°C to 125°C with proper correction factor applied.

 Chart of correction factor

Note: Rerating depicted in this curve is in addition to the standard derating of 25% for continuous operation.

Package and Minimum order QTY

1000pcs fuses in tape (width 24mm) and reel (dia. 13inch)
