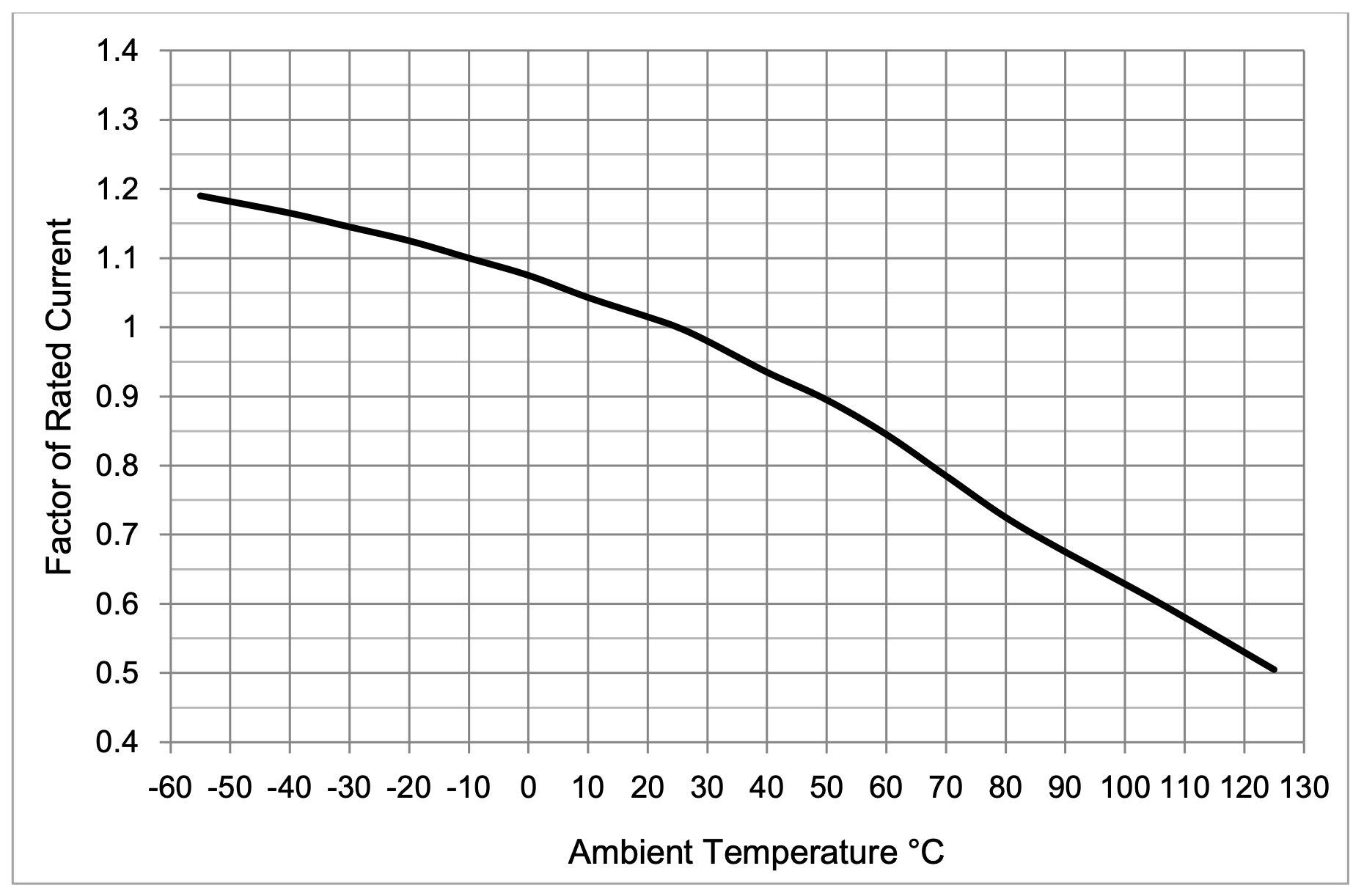

Temperature derating curve

 Normal Operating Temperature: 25°C±2°C
 Operating Temperature: -55°C to 125°C with proper correction factor applied. Chart of correction factor

Package and Minimum order QTY

80A-100A: 1000pcs fuses in tape (width 24mm) and reel (dia. 13inch)
