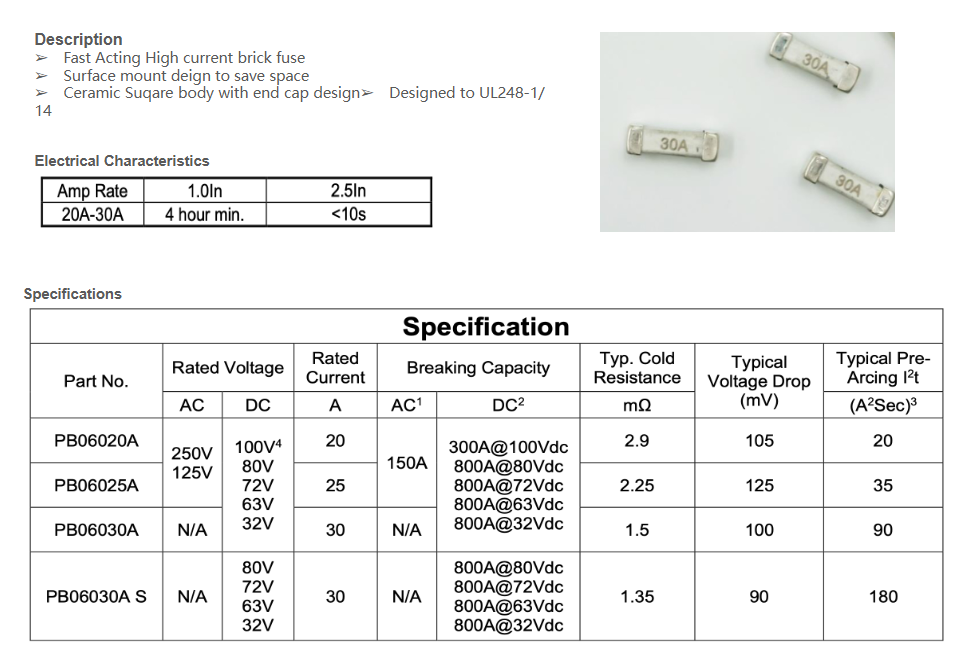

1. AC Interrupting Rating (Measured at designated voltage, 100% power factor random closing)
2. DC Interrupting Rating (Measured at designated voltage, time constant of less than 50 microseconds, battery source)
3. Typical Pre-arcing I2t are measured at 10In Current, DC battery bank, but not exceeding the interrupting rating, time constant of calibrated circuit less than 50 microseconds)
4. Internal qualification for 20A-30A @ 100Vdc, UL Approval is pending

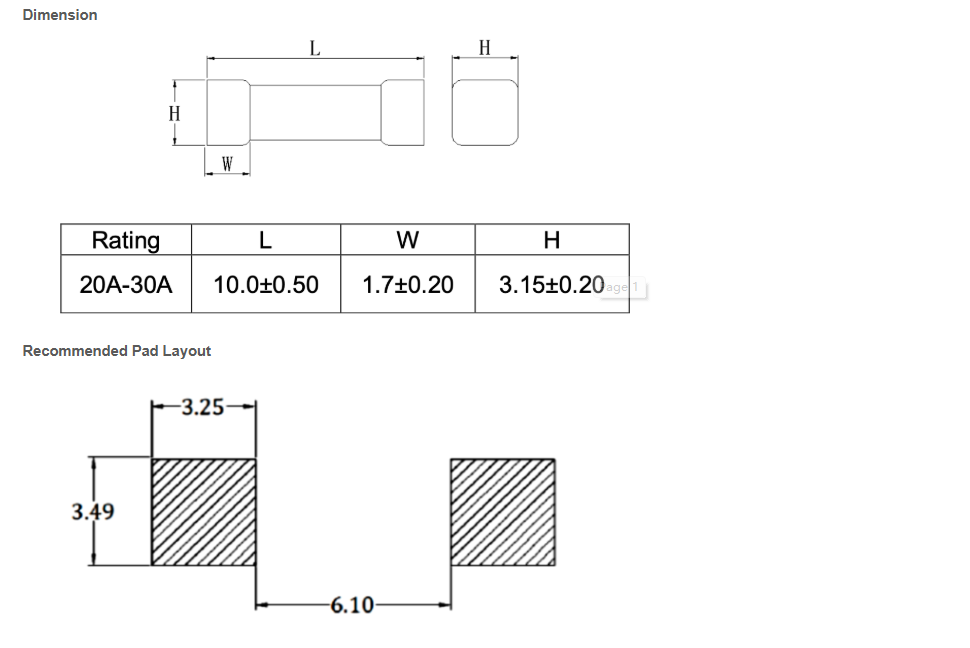

Recommend trace thickness is 3oz; the minimum trace width is 10mm;

Recommend stencil thickness is 0.15mm;

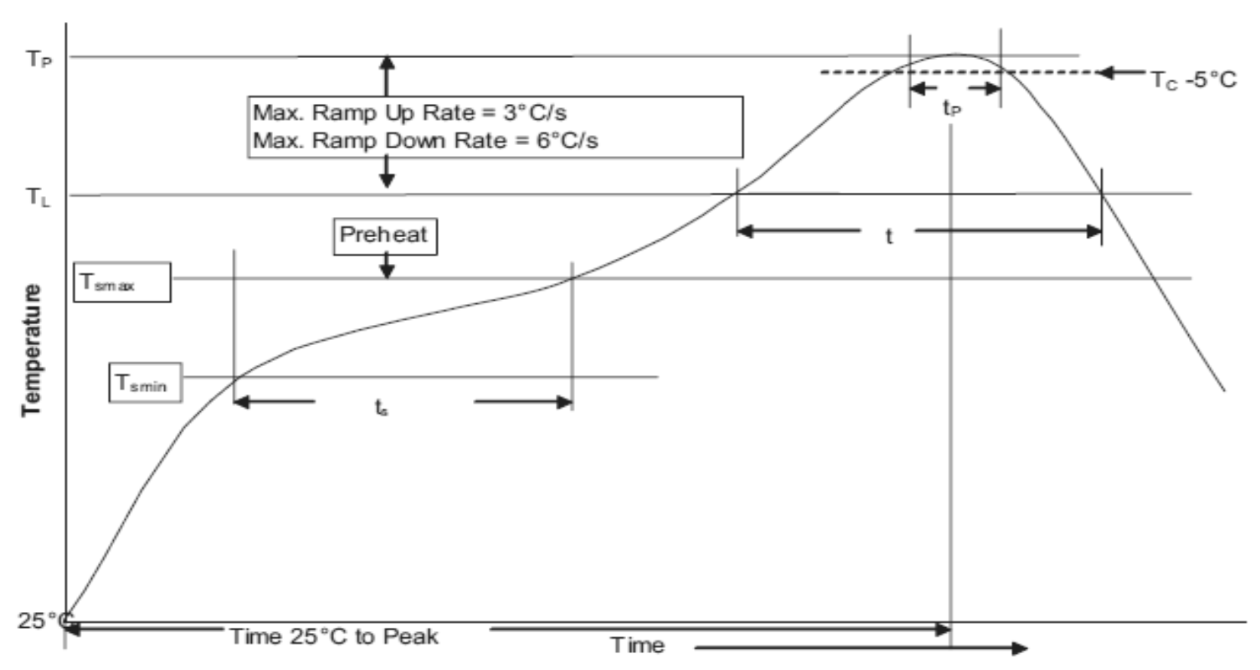

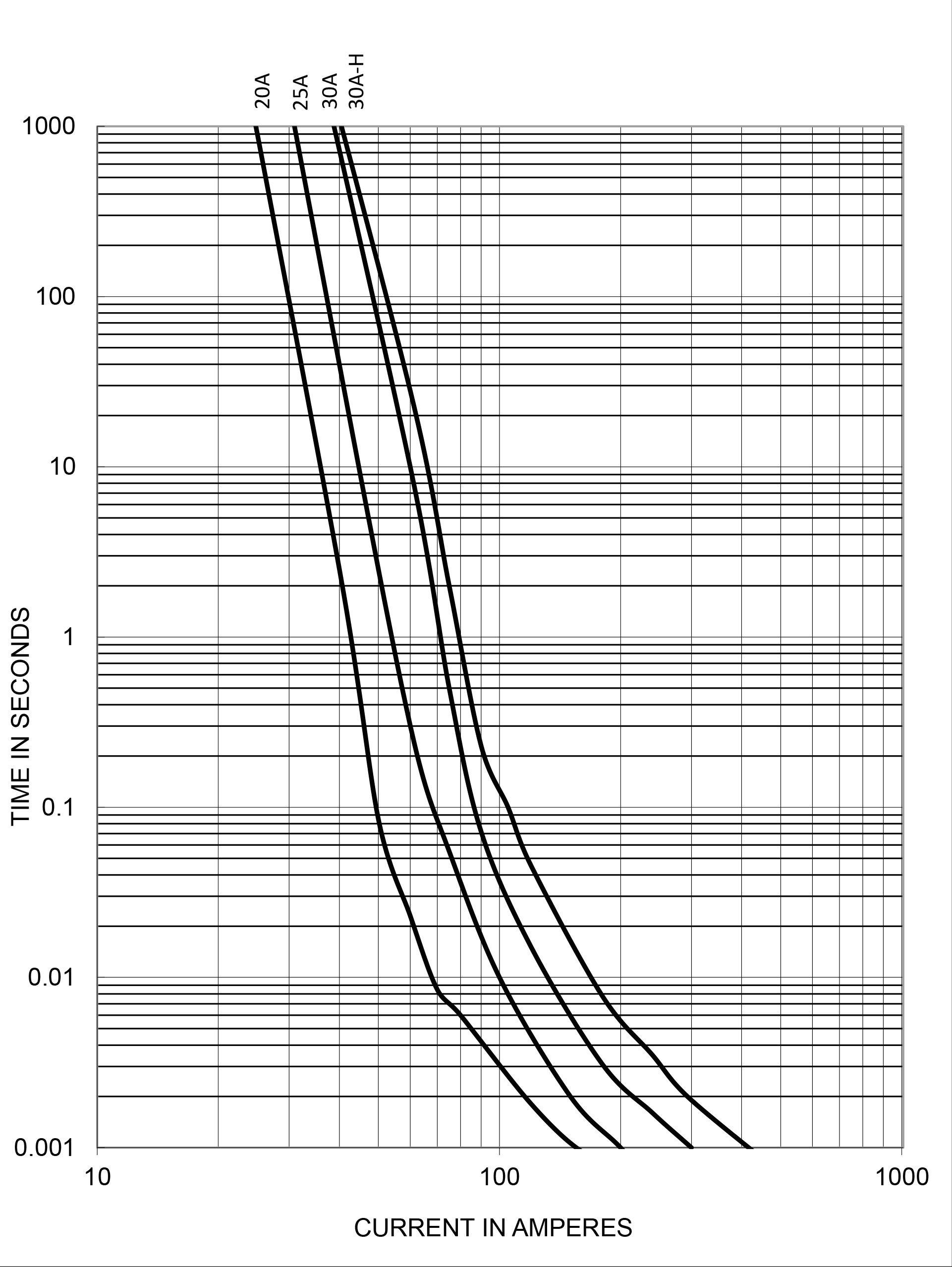

Infrared Reflow

• Temperature: 260° C
• Time: 30 Seconds Maximum

Temperature derating curve

⚫ Normal Operating Temperature: 25°C±2°C
⚫ Operating Temperature: -55°C to 125°C with proper correction factor applied.

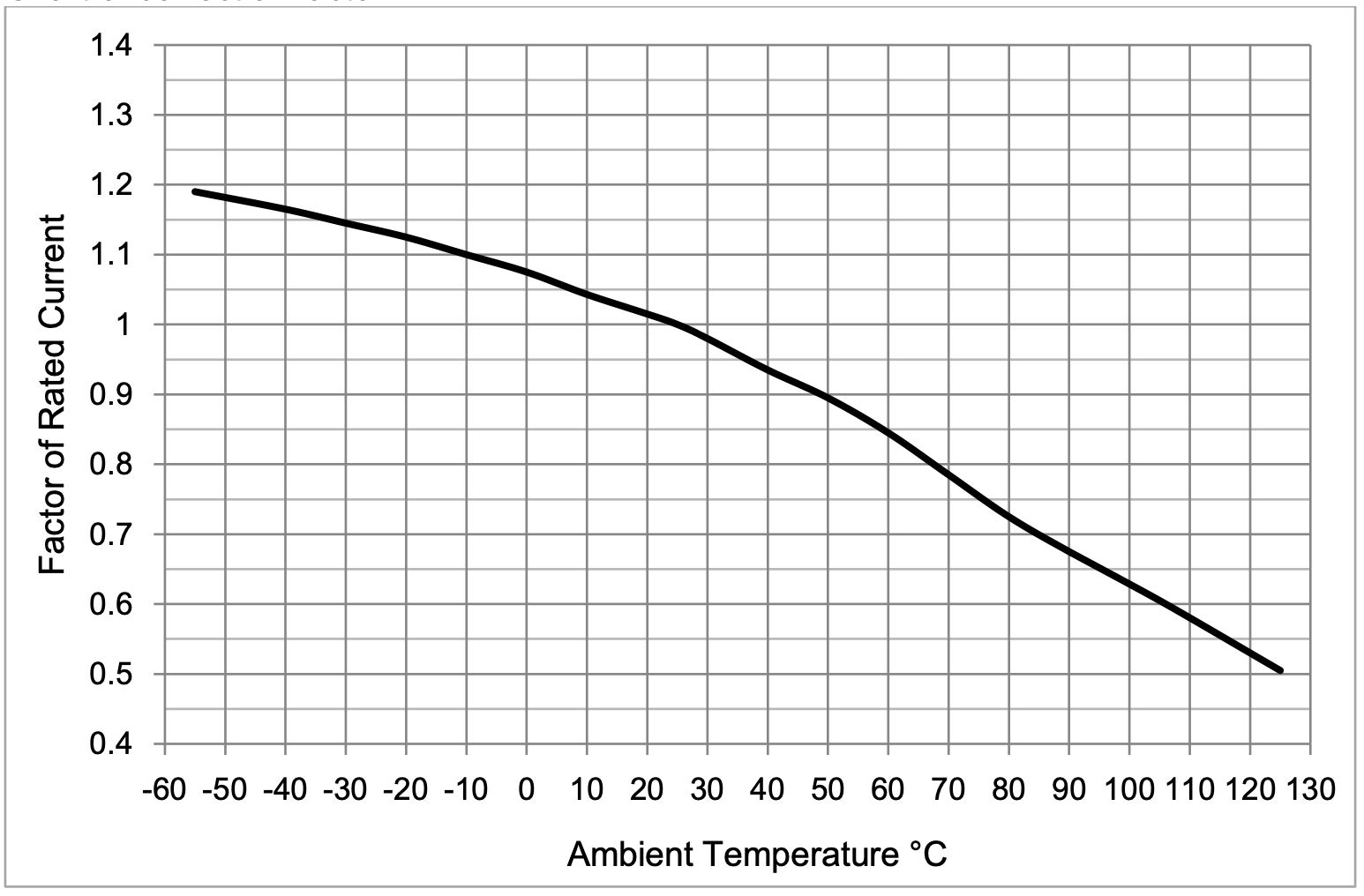

⚫ Chart of correction factor

Package and Minimum order QTY

20A-30A: 1500pcs fuses in tape (width 24mm) and reel (dia. 13inch);
