Features:

➢ Rapid interruption of excessive current
➢ Compatible with reflow

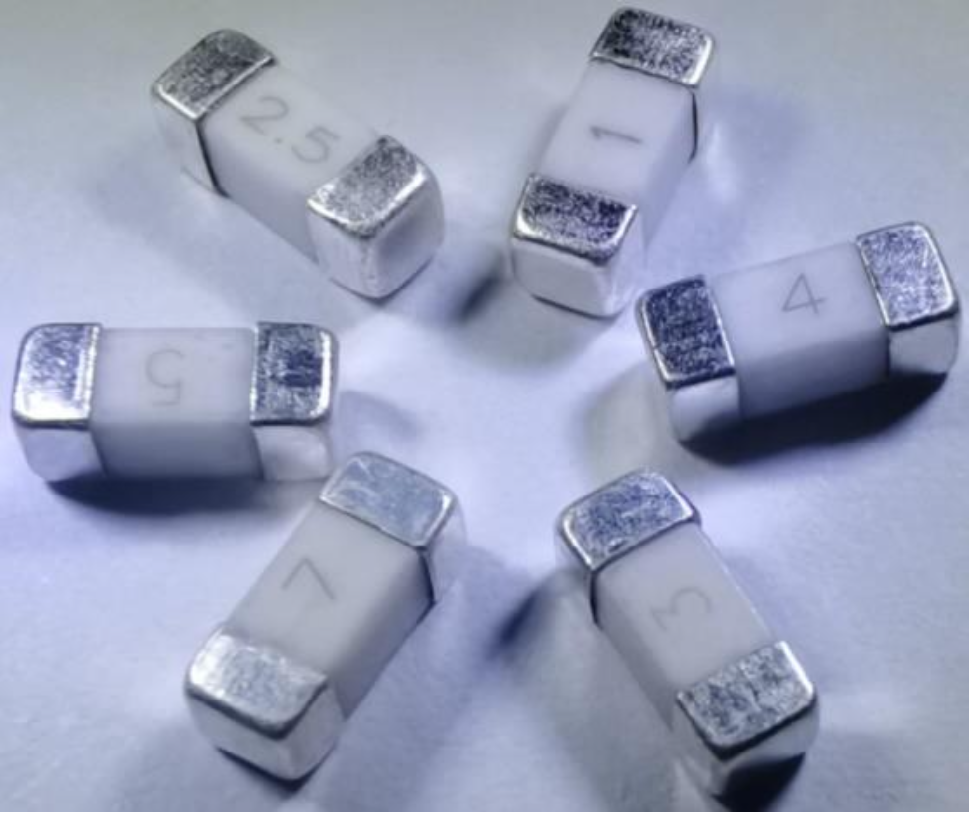

➢ Ceramic body and silver-plated copper terminal➢ Excellent environmental integrity
➢ One time positive disconnect
➢ RoHS compliant

➢ Designed to UL 248-14

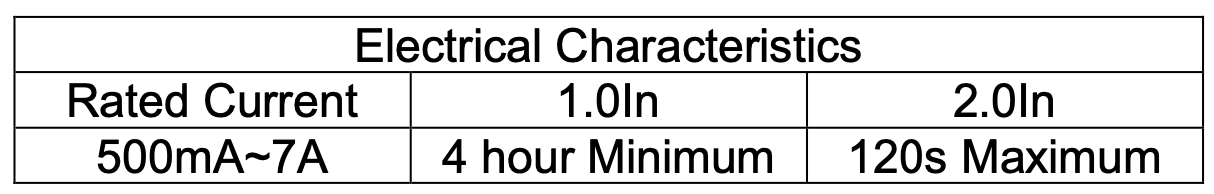

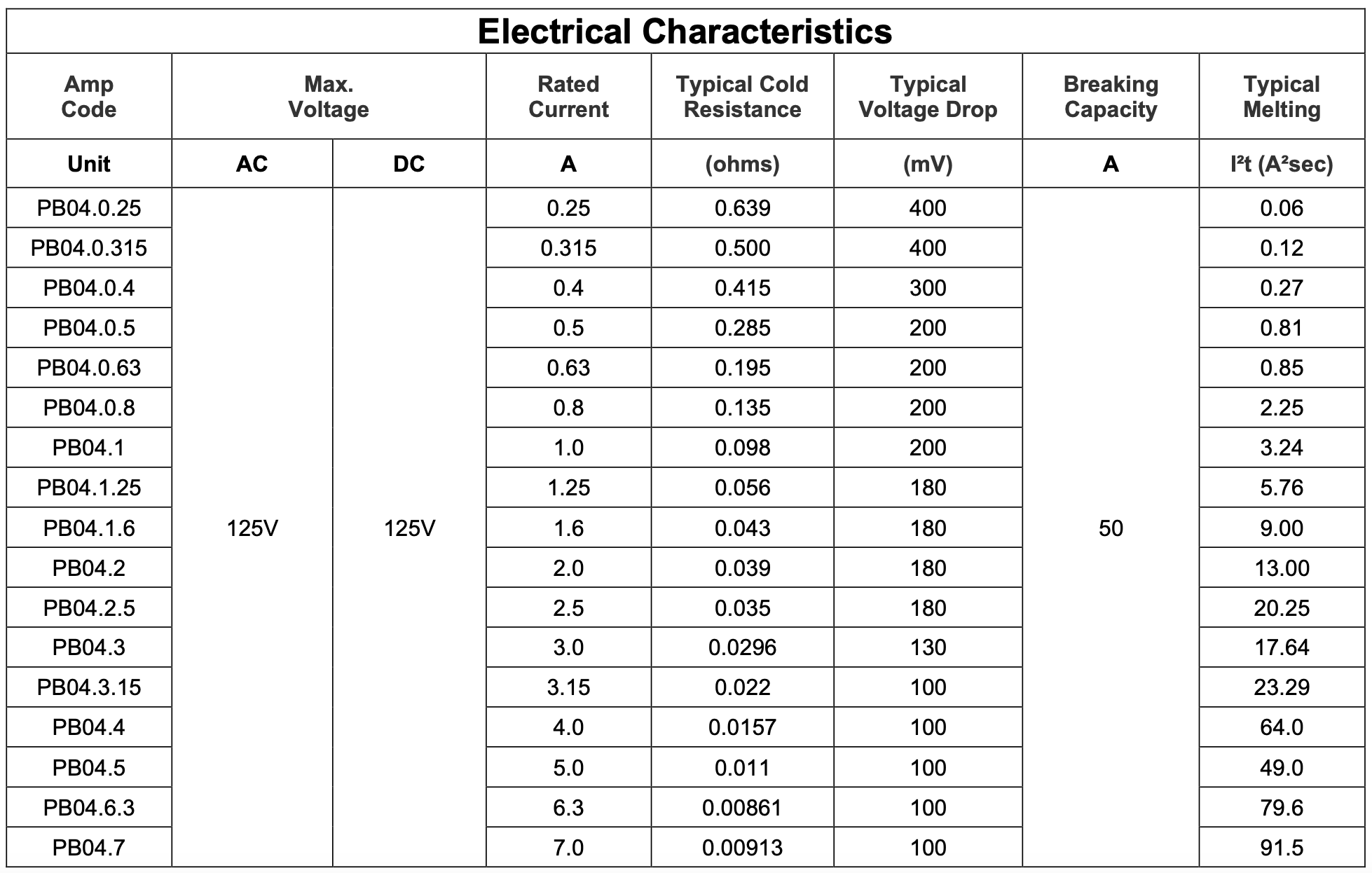

1.AC Interrupting Rating measured at designated voltage, 100% power factor; DC Interrupting Rating measured at designated voltage, time constant of less than 50 microseconds, battery source

2.DC Cold Resistance are measured at <10% of rated current in the ambient temperature of 25°C

3.Typical Pre-arcing I2t are measured at 10In Current

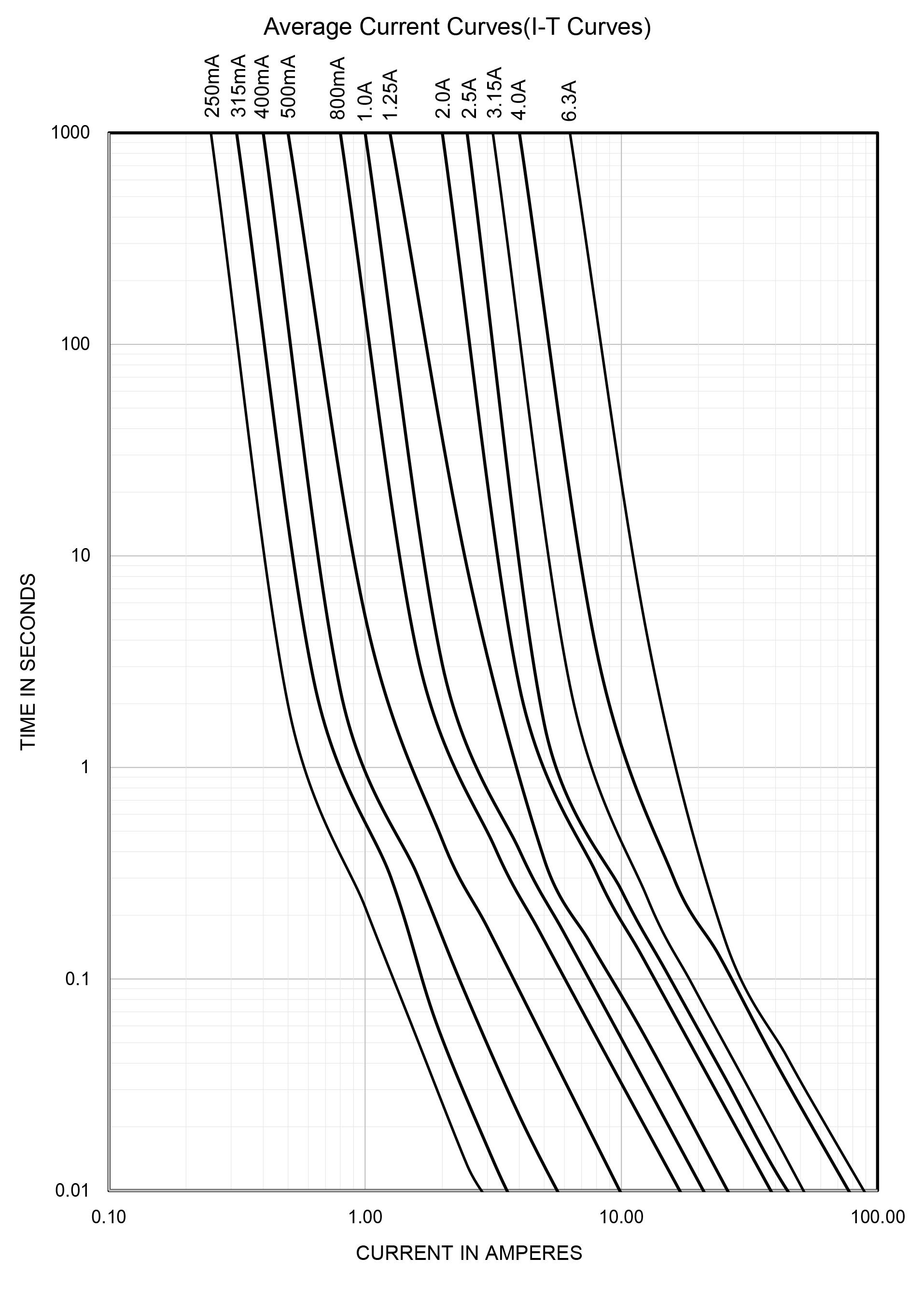

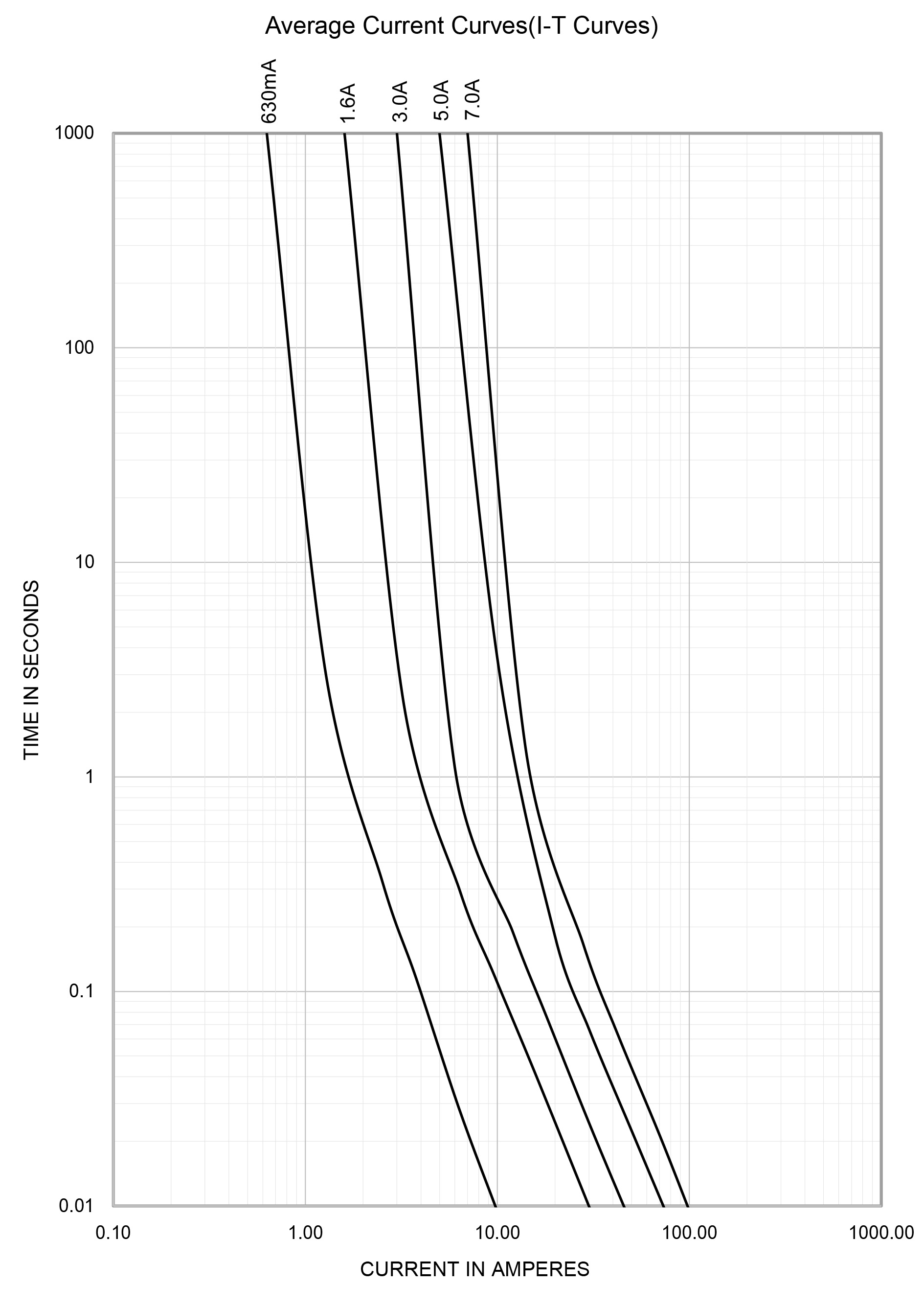

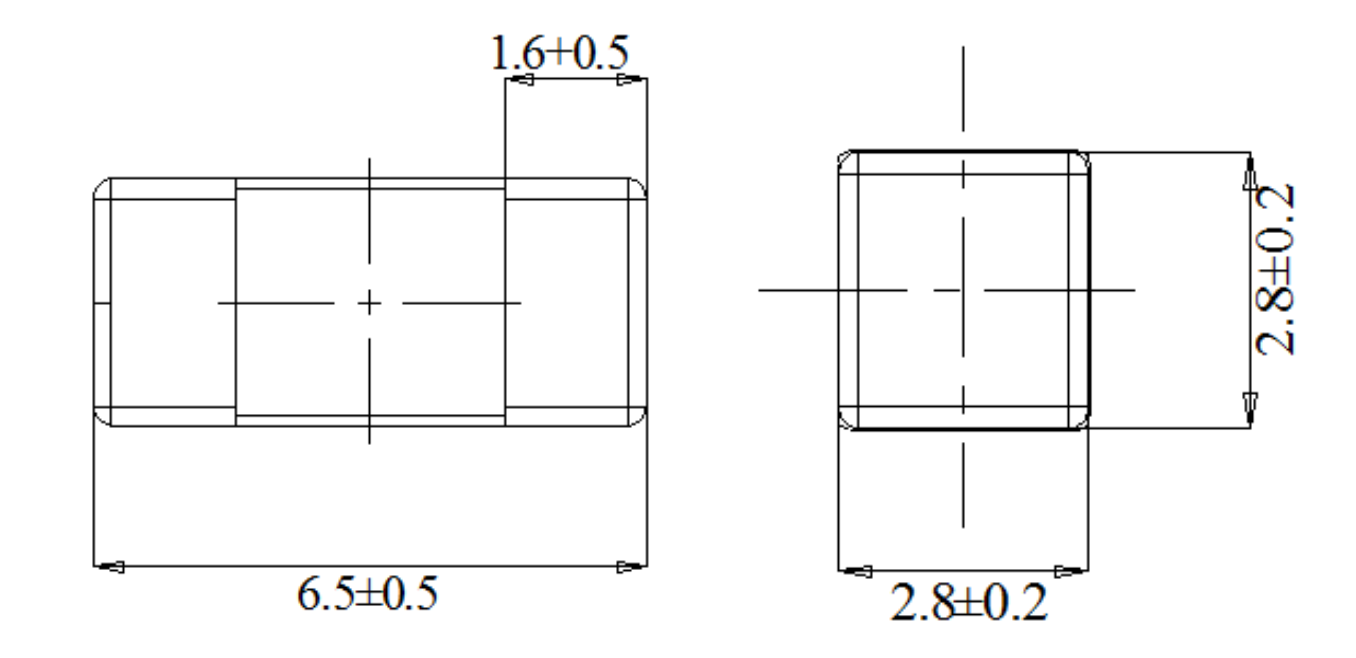

Dimension

Drawing not to scale (Unit: mm)

Soldering method

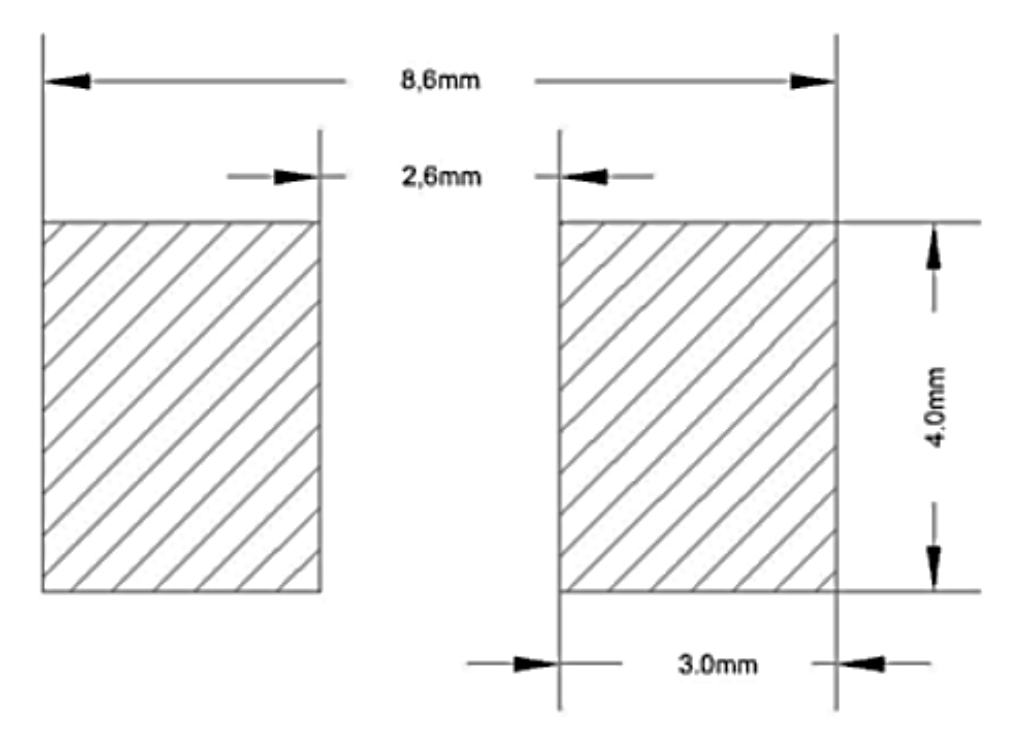

➢ Recommended land pattern (mm)

Recommend Stencil thickness is 0.15mm

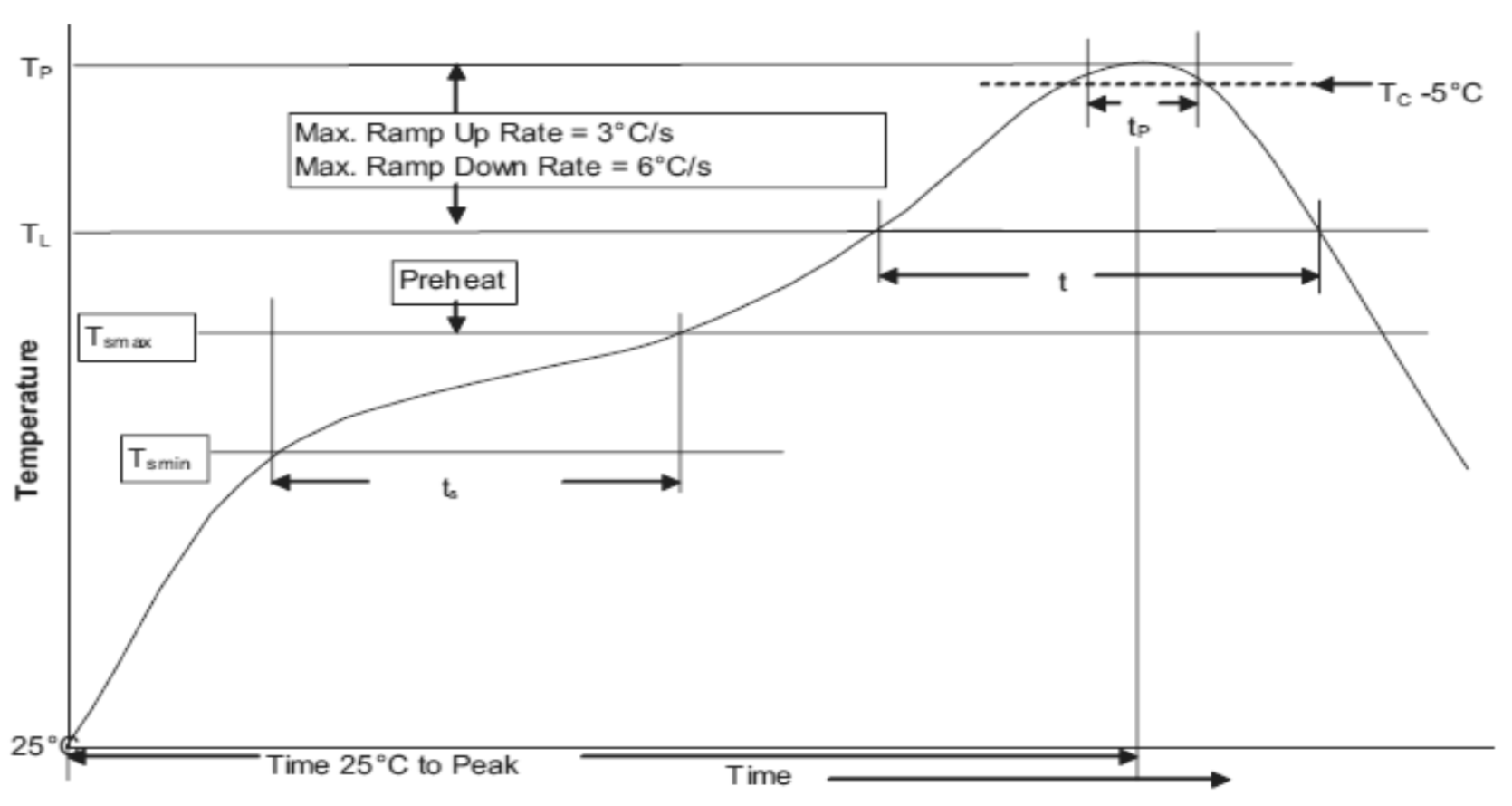

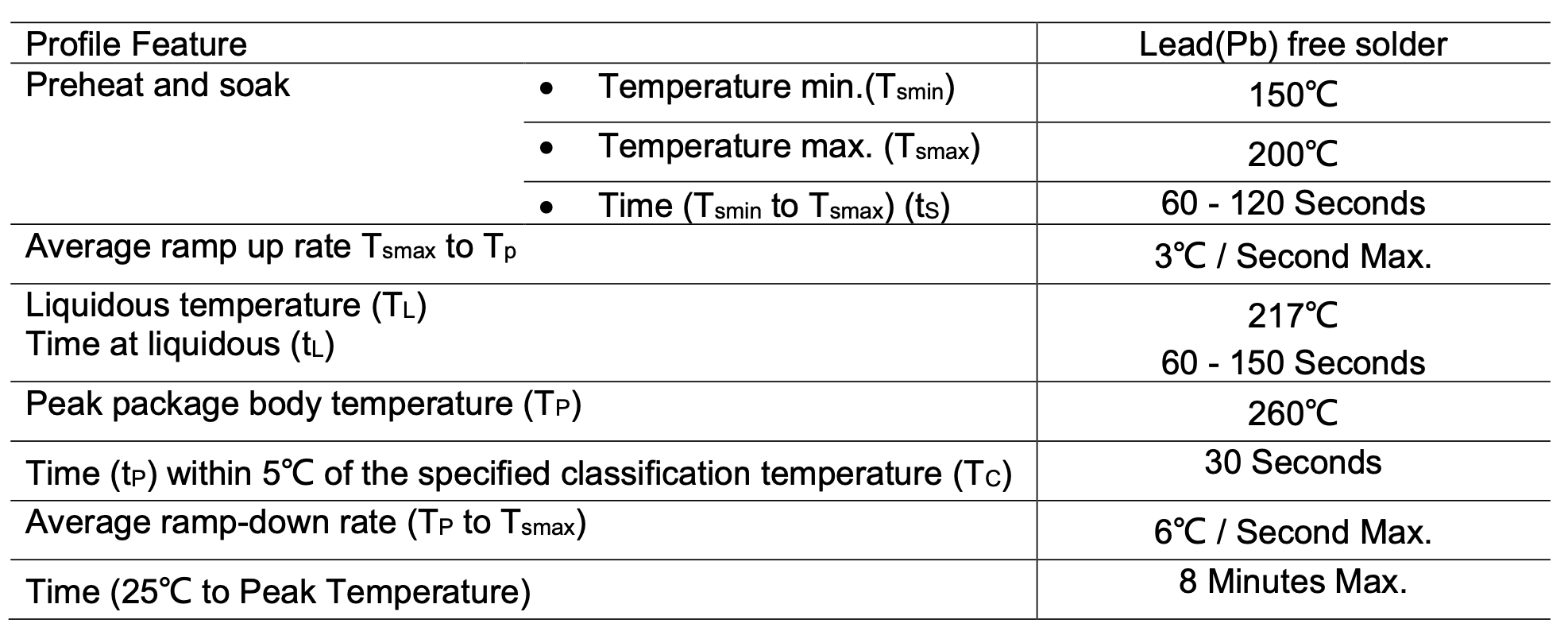

Infrared Reflow

• Temperature: 260° C
• Time: 30 Seconds Maximum

Temperature Derating Curve

E355868

Package

Normal Operating Temperature: 25°C± 2°C
Operating Temperature: -55°C to 125°C with proper correction factor applied.

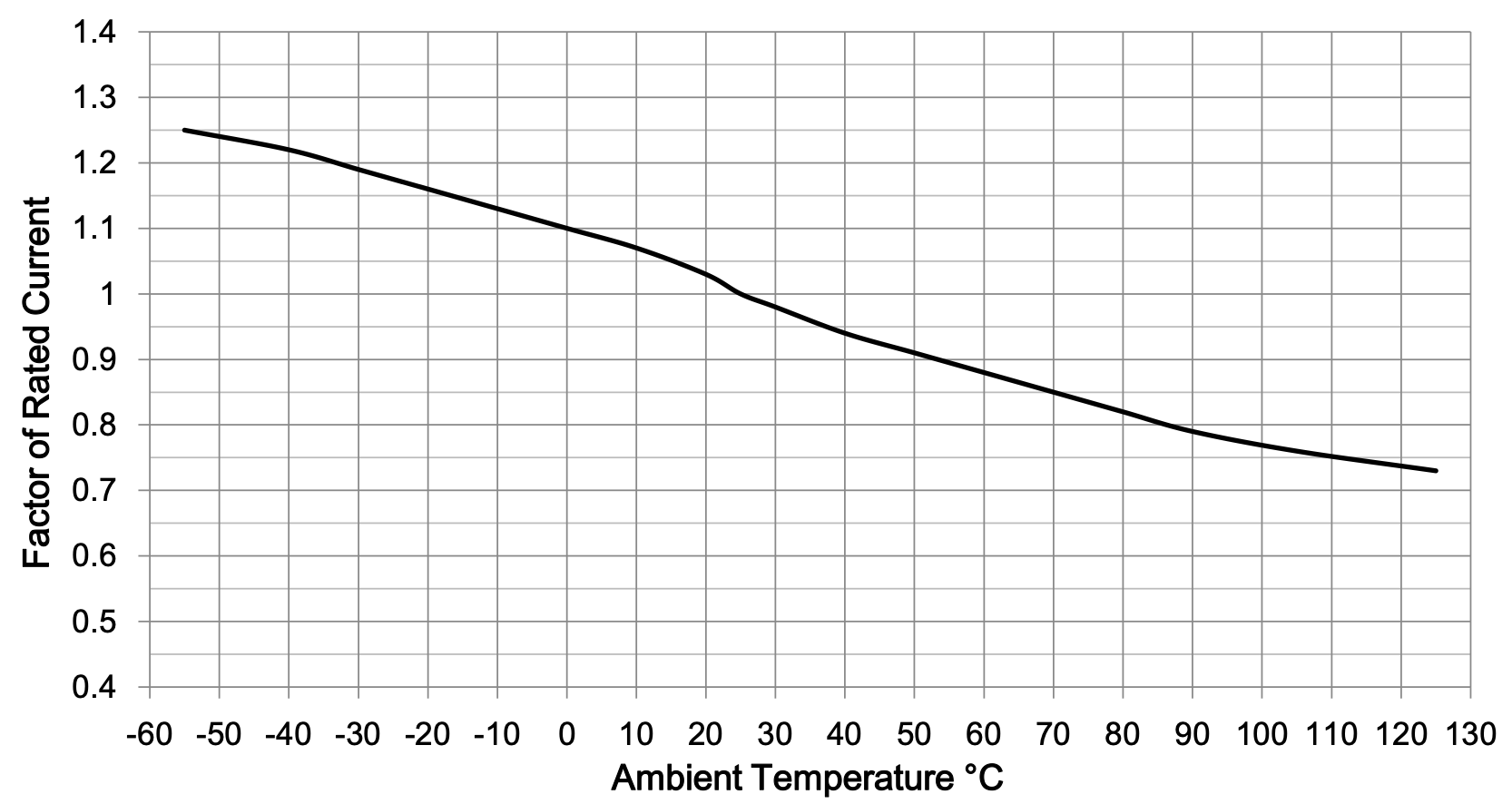

Chart of correction factor

Storage Temperature: -55°C to 125°C

Package

1000 fuses on 12mm tape-and-reel per EIA Standard 481.
