Description

 Small size with high current rating for short proterction
 High breaking capacity under 125Vdc for high power battery systems RoHS compliant and Lead Free

 RoHS compliant and Lead Free

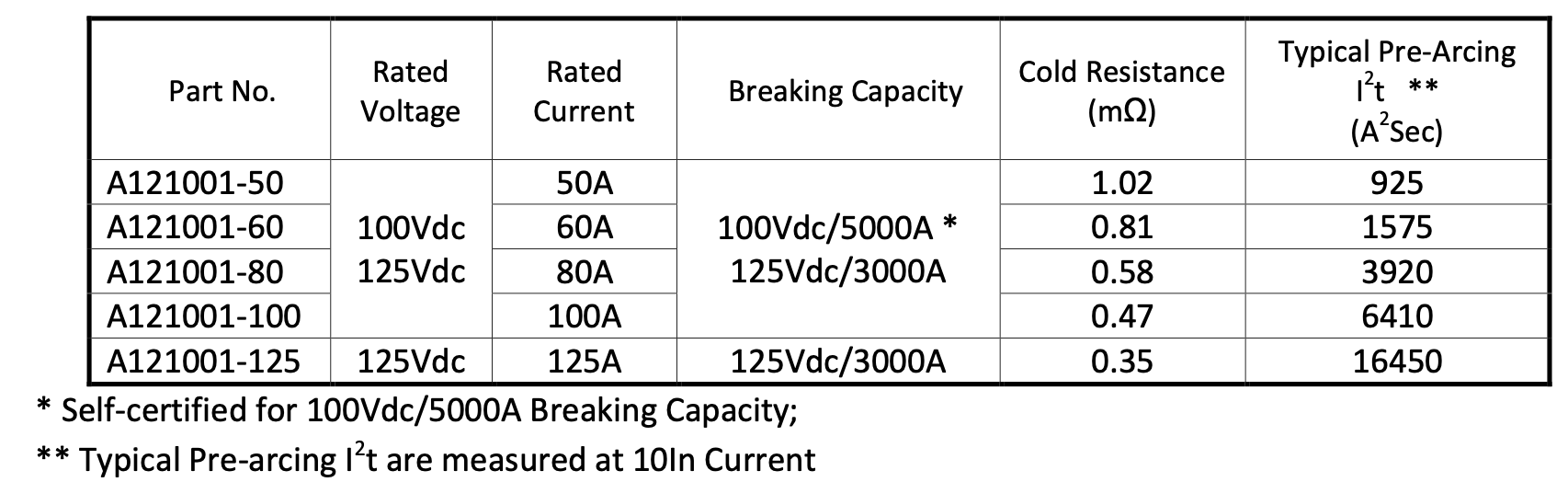

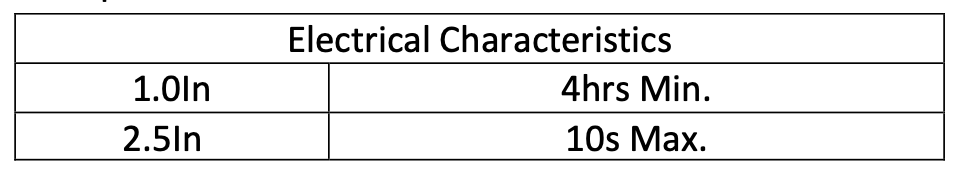

Specifications

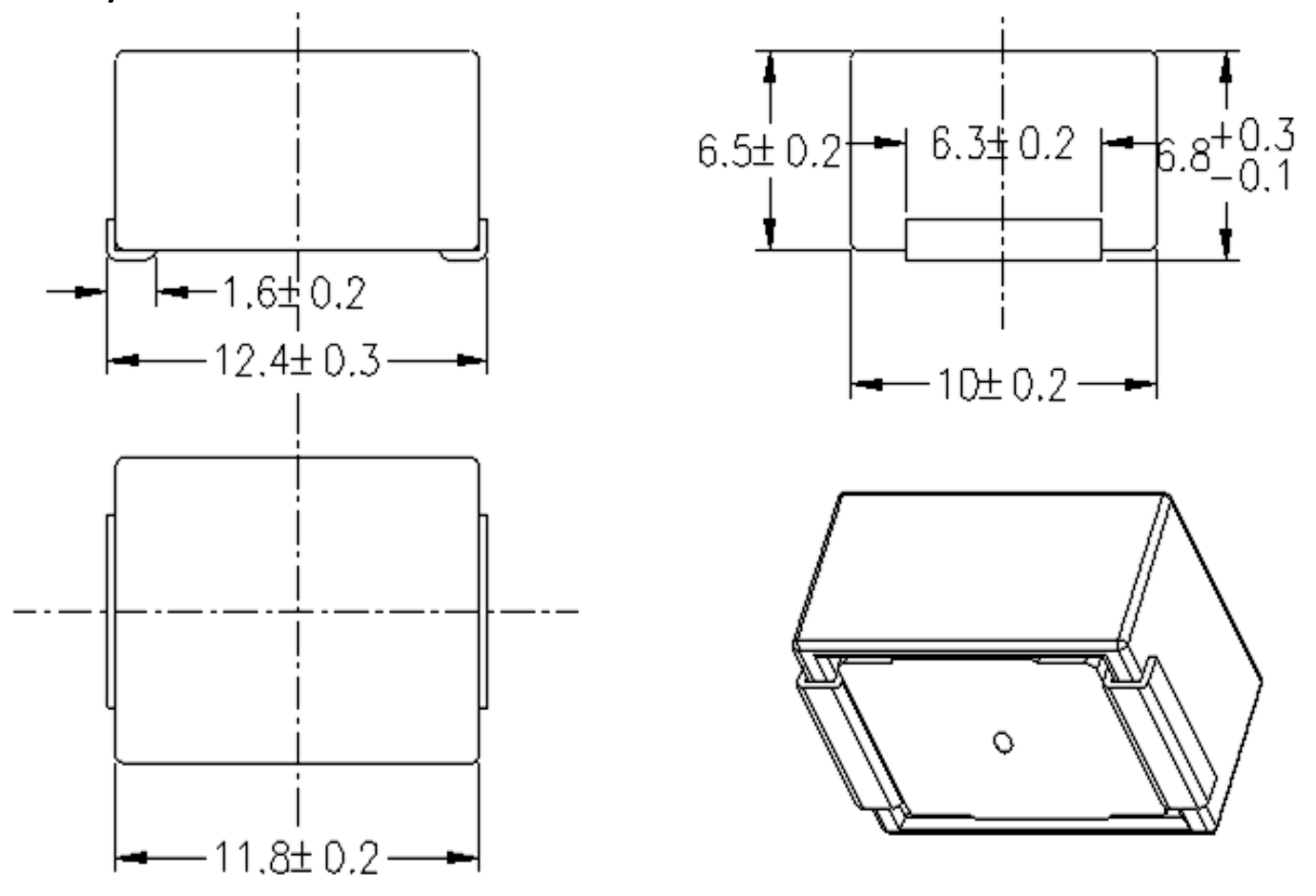

Dimension (Unit: mm)

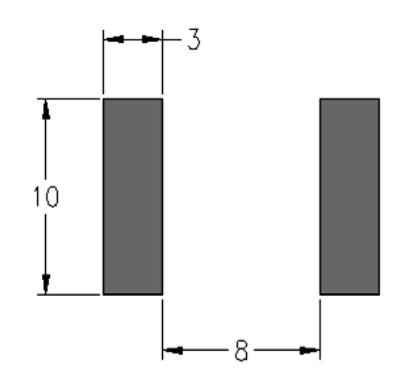

Recommended Pad Layout (Unit: mm)

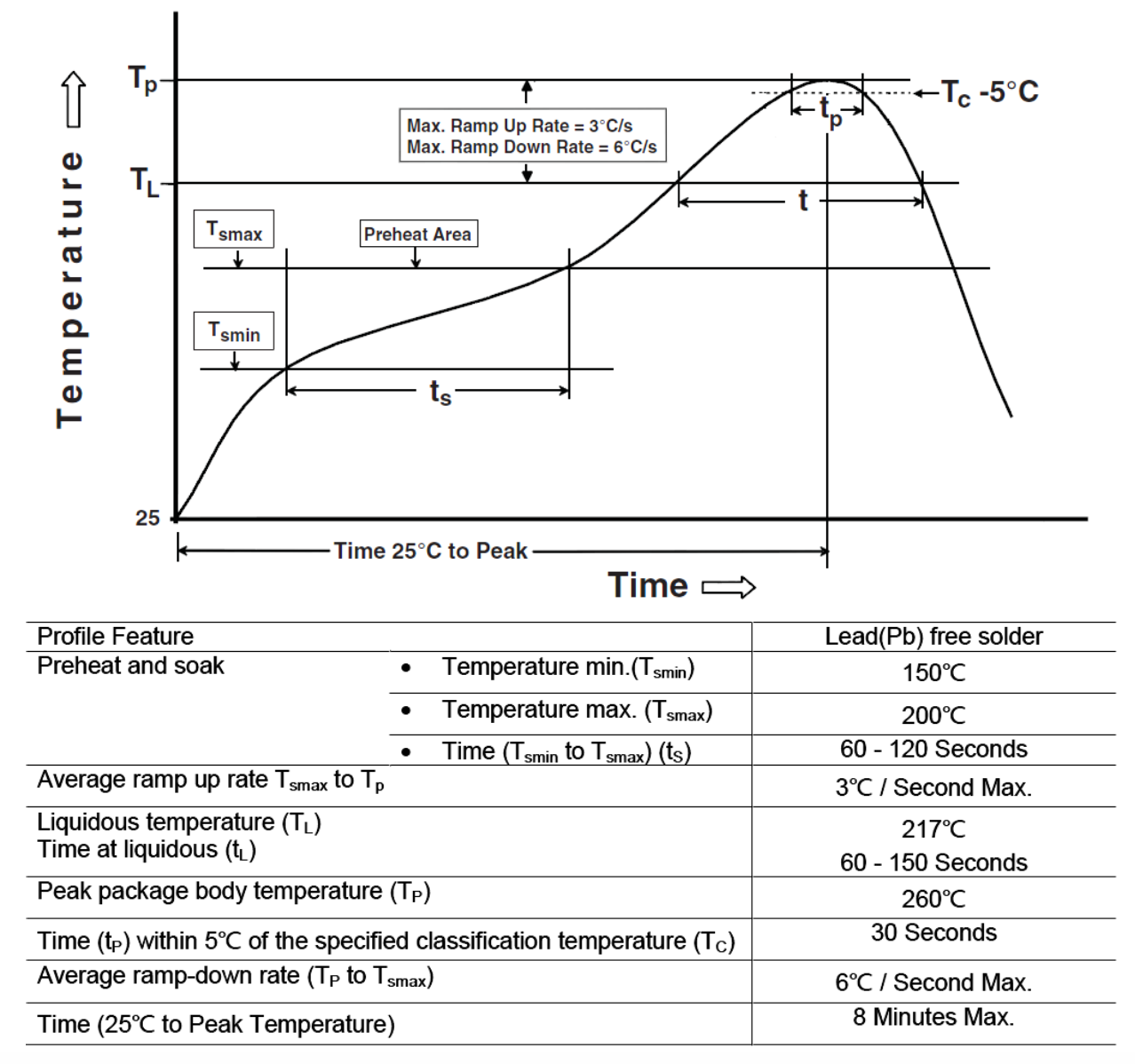

Reflow Soldering Parameters

Wave Soldering Parameters

260C, 10s Max.

Transportation and Storage

During transportation and storage, should avoid water seepage and mechanical damage.

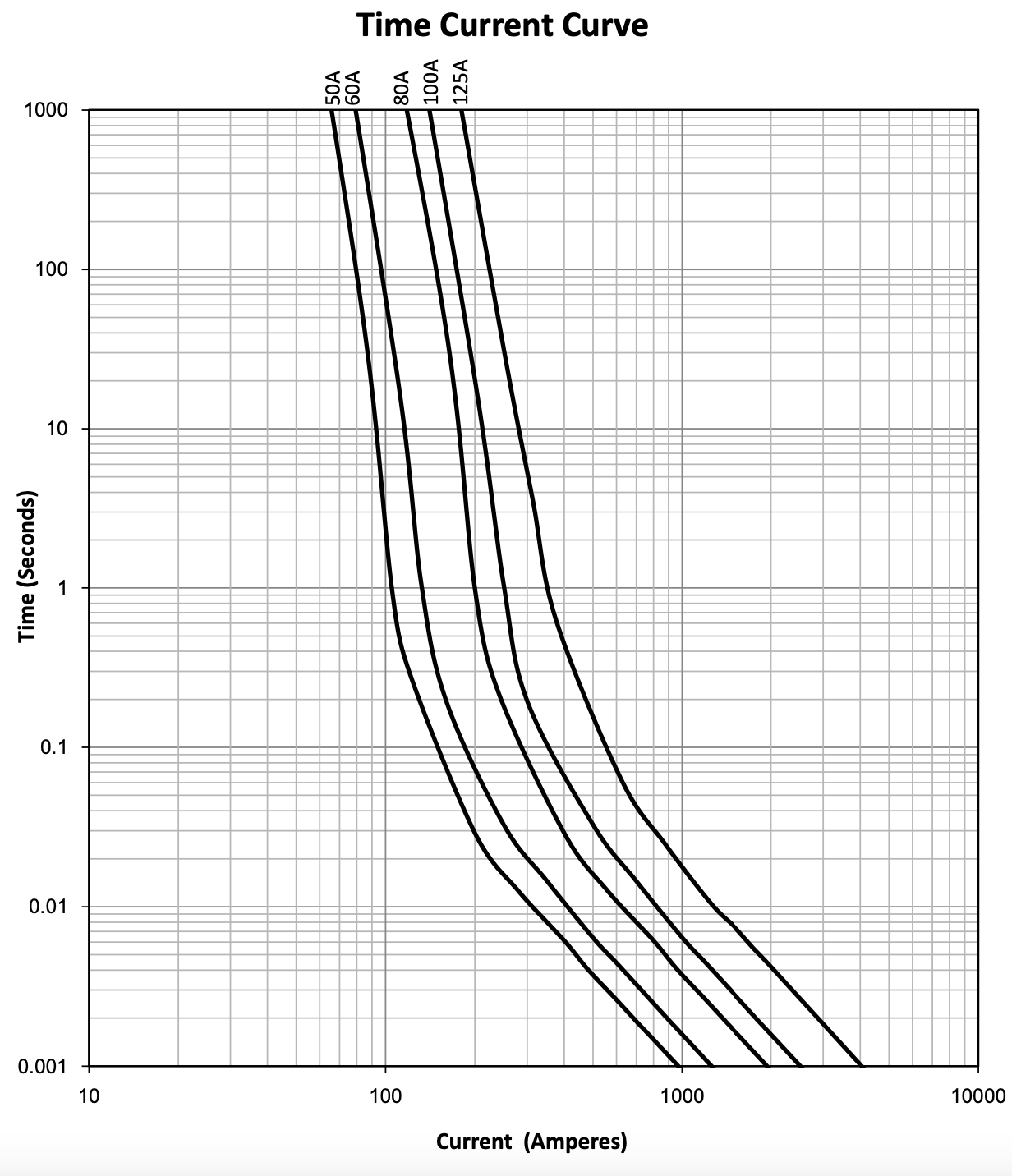

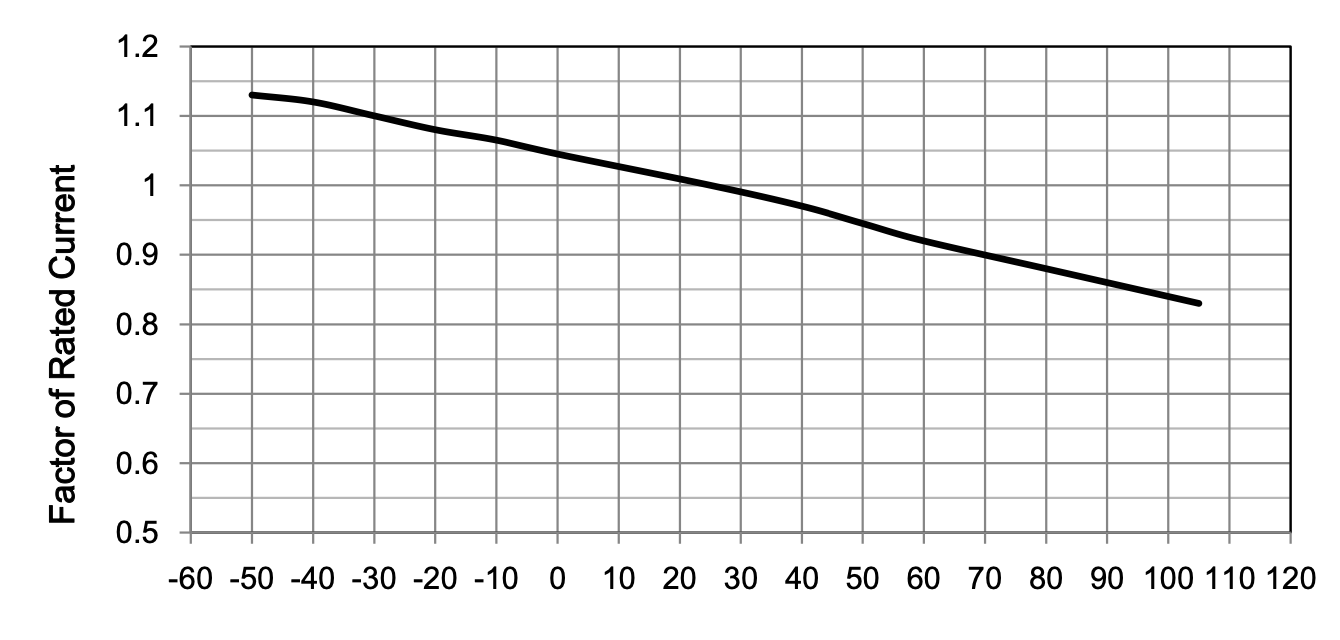

Temperature Re-Rating Curve

Operation temperature: -40°C to 105°C with proper re-rating factor

                                                       Ambient Temperature °C

*Rerating depicted in this curve is in addition to the standard derating of 25% for continuous operation. Example: For continuous operation at 70°C, the fuse should be re-rated as follows: I = (0.75)(0.90)In = (0.675)In
*The temperature re-rating curve represents nominal conditions. For questions about the temperature re-rating curve, please consult ASTM fuse technical support assistance.

Packaging

24mm Tape and Reel. 500pcs/Reel
