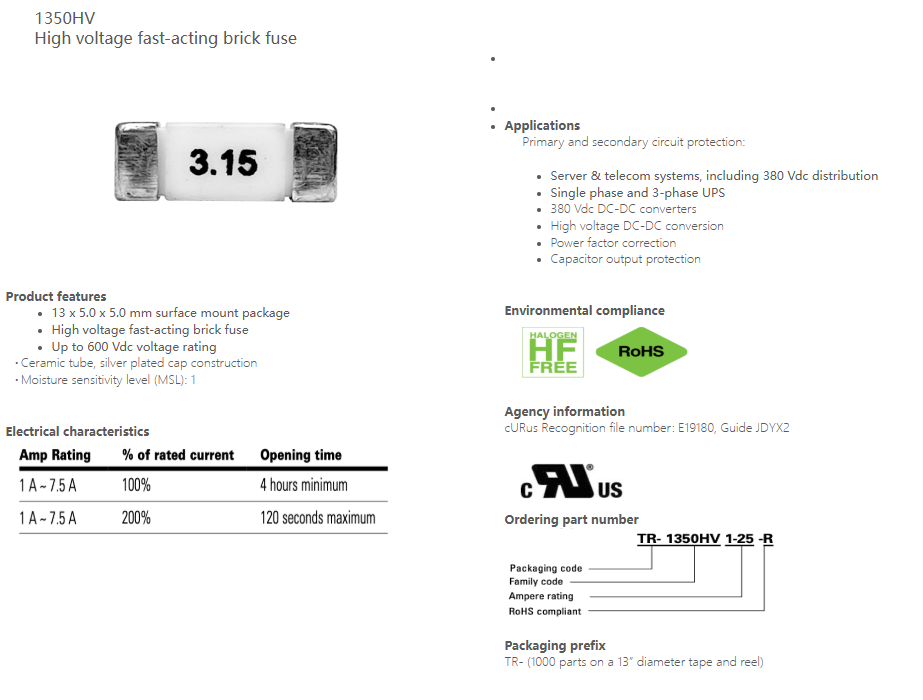

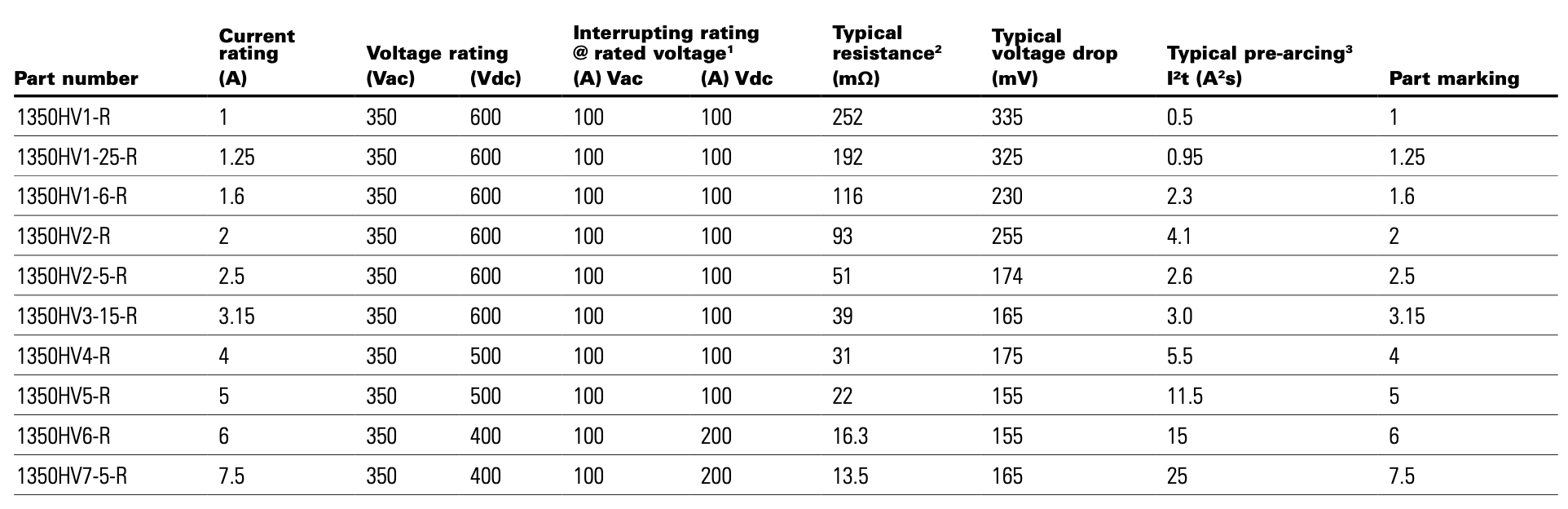

Product specifications

1. AC Interrupting rating (measured at designated voltage, 100% power factor); DC Interrupting rating (measured at designated voltage, time constant of less than 50 microseconds, battery source) 2.DC Cold resistance are measured at <10% of rated current in ambient temperature of +25 °C
3.Typical pre-arcing I2t are measured at 10 In current, DC battery bank

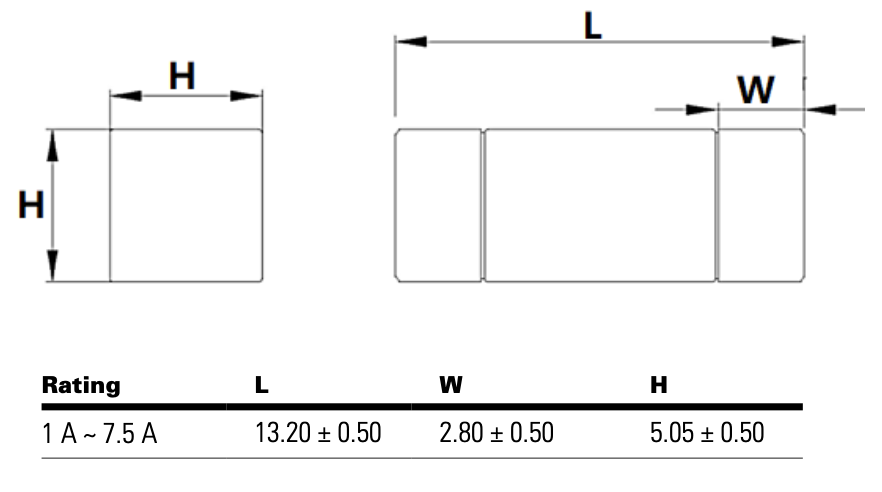

Dimensions- mm

Drawing not to scale

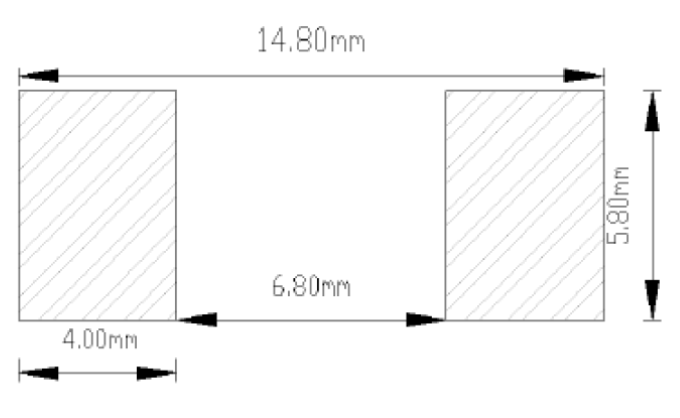

• Recommended pad layout

•


•

• Recommended trace thickness is 35 um; the minimum trace width is 5 mm Recommended stencil thickness is 0.15 mm

  1350HV is also compatible with Littelfuse LF485 pad layout; wave solder pad size 5.6 mm x 6.9 mm and reflow solder pad size 5.6 mm x 3.5 mm

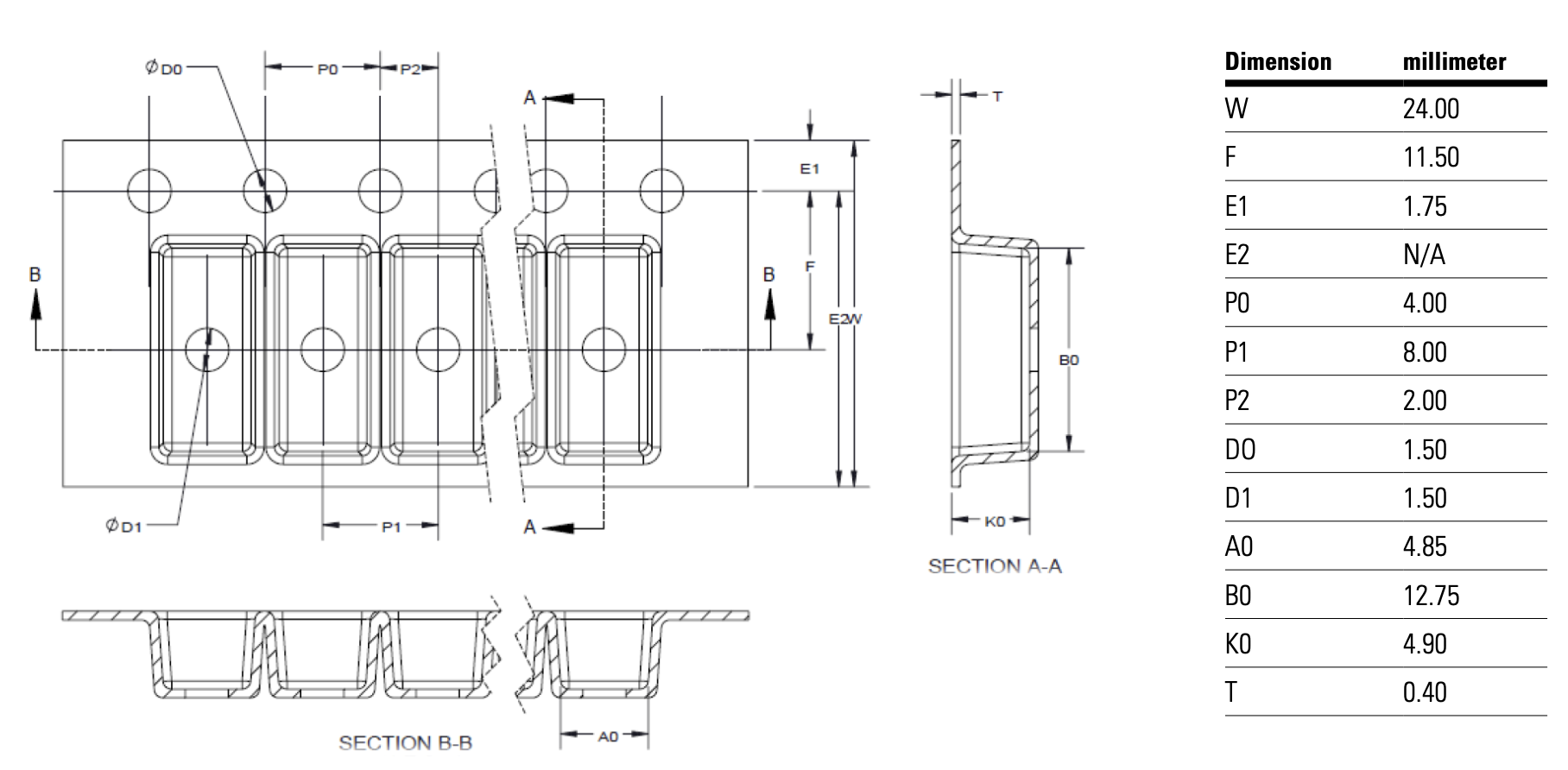

Packaging information - mm

1000 parts per 13” diameter reel (EIA-481 compliant) Drawing not to scale

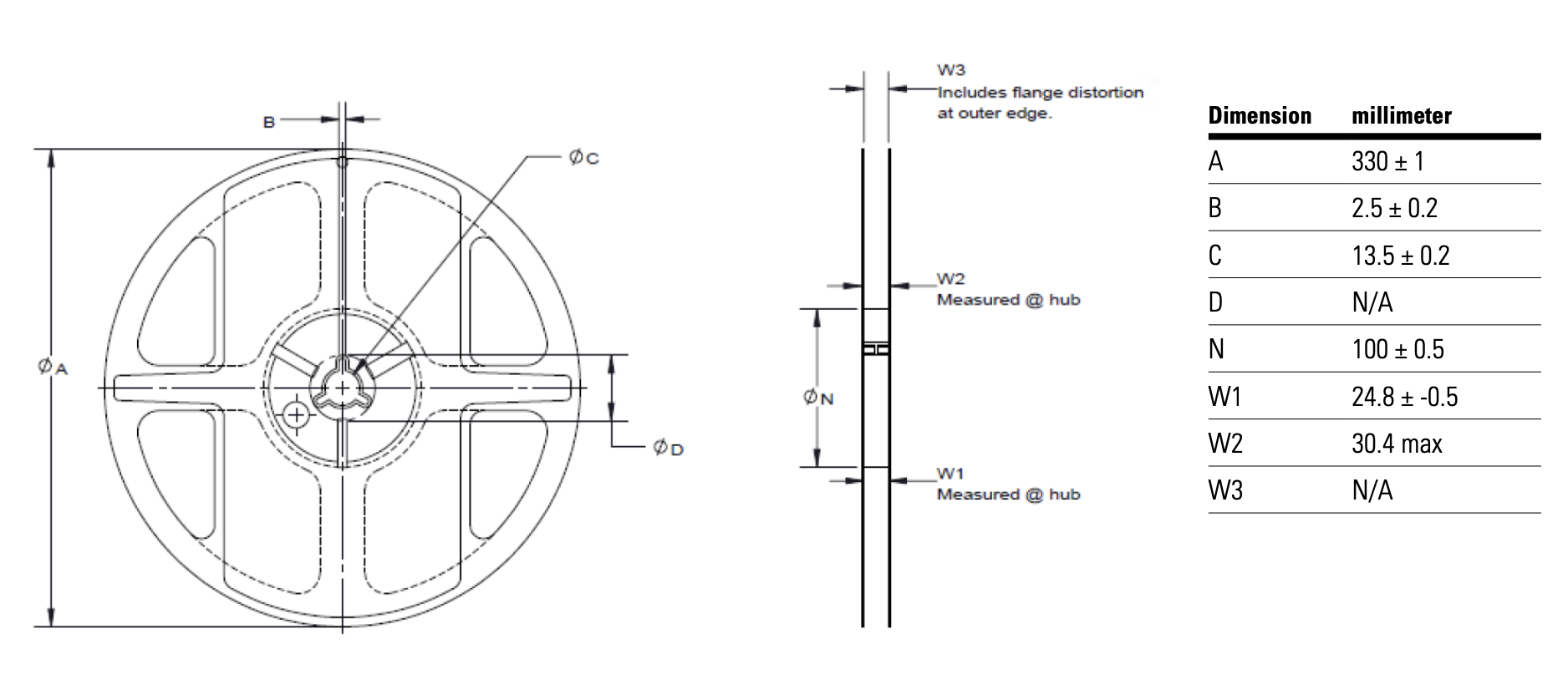

Reel dimension- mm

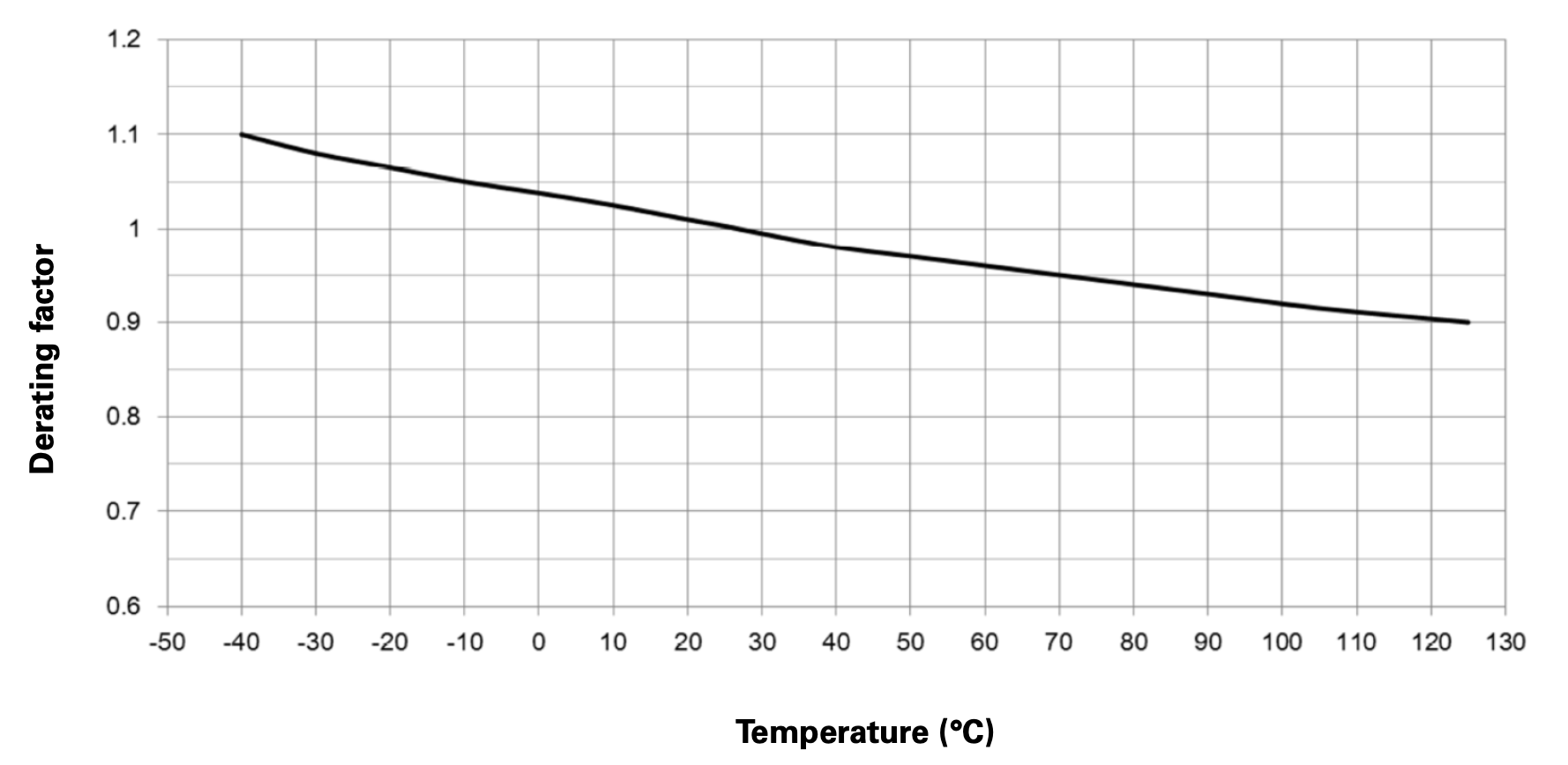

Temperature derating curve

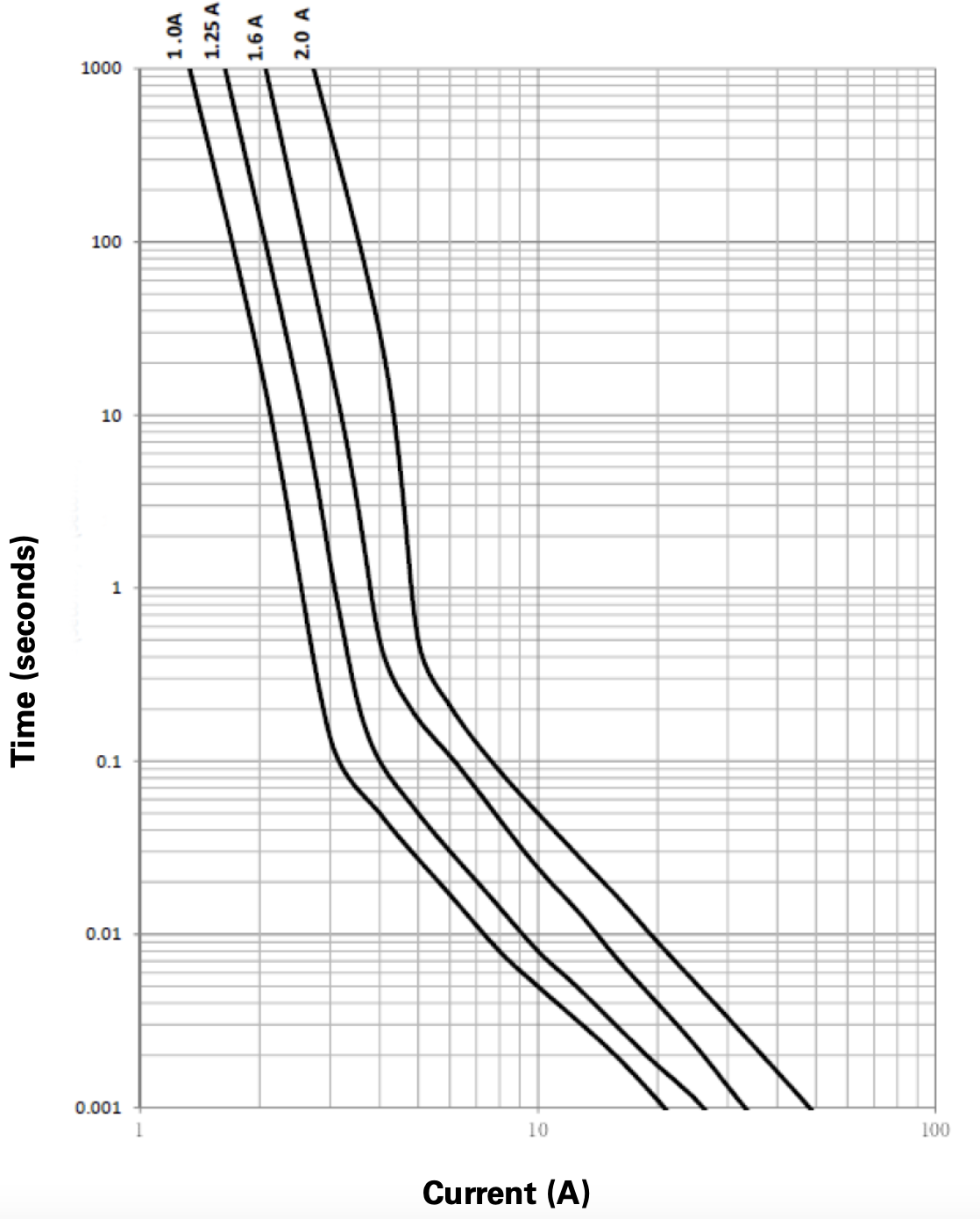

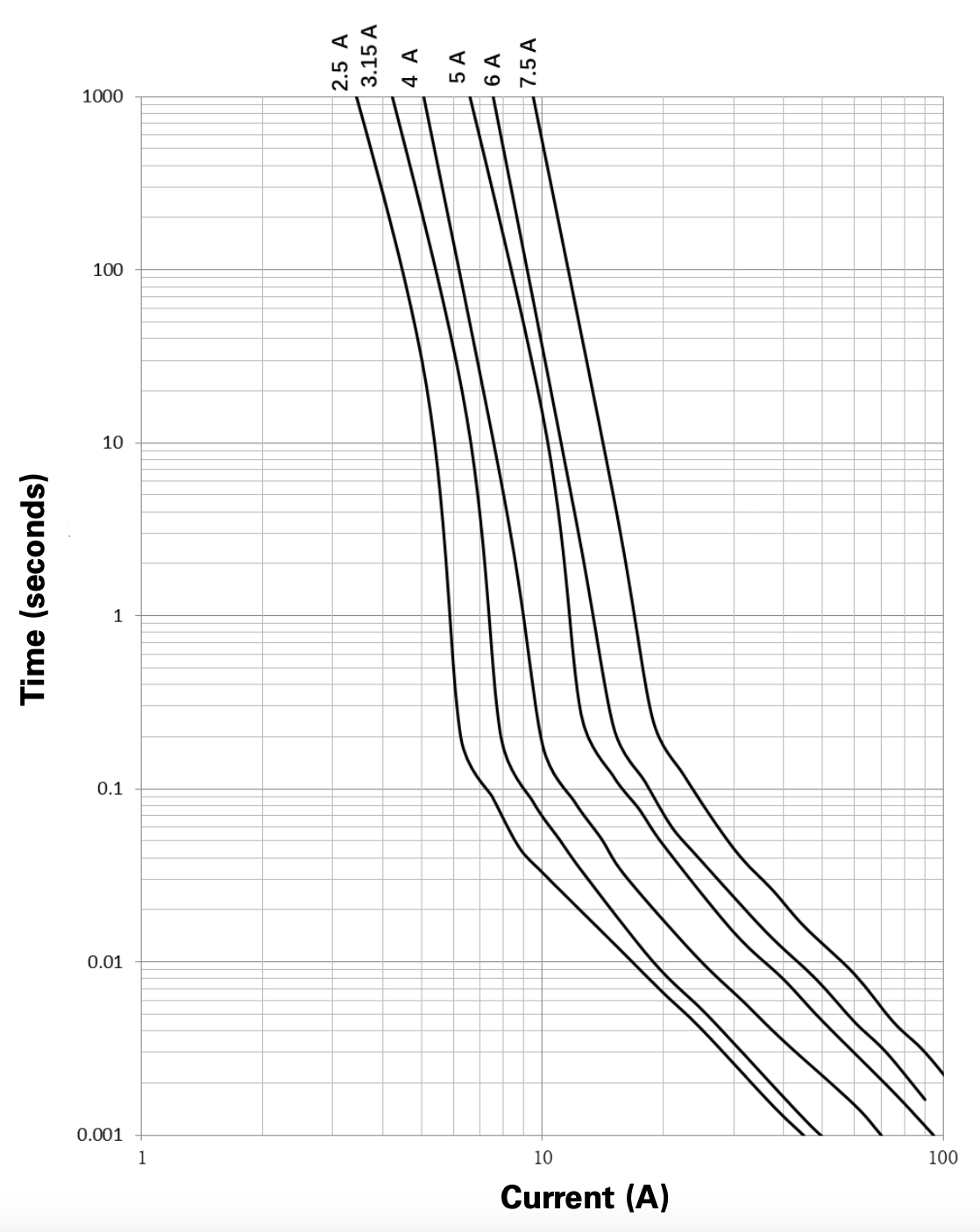

Current vs. time curve

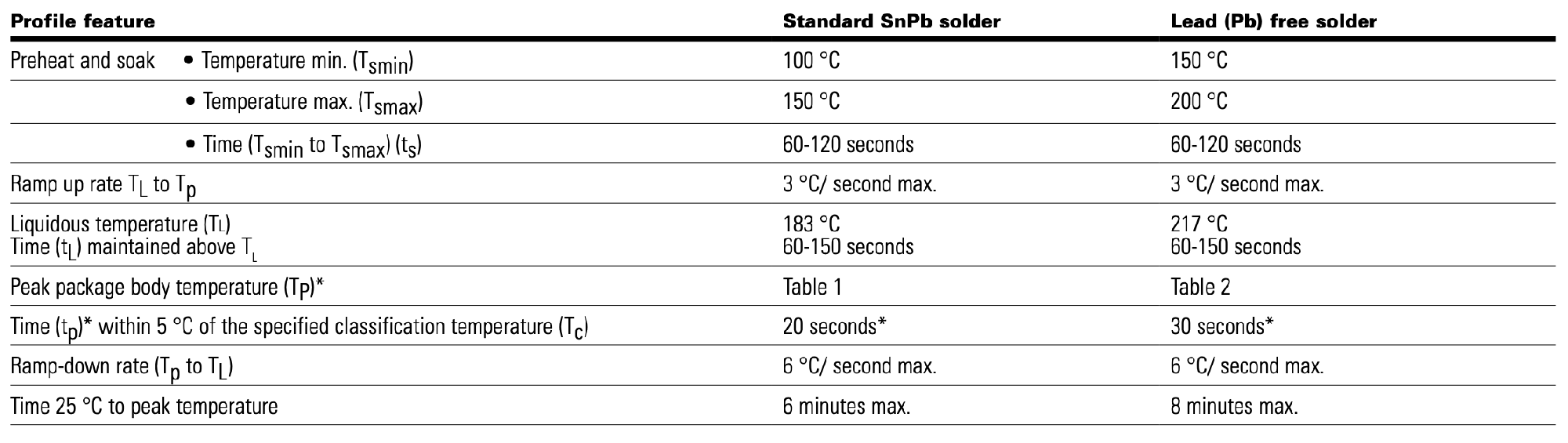

Solder reflow profile

Reference J-STD-020

* Tolerance for peak profile temperature (Tp) is defined as a supplier minimum and a user maximum.
