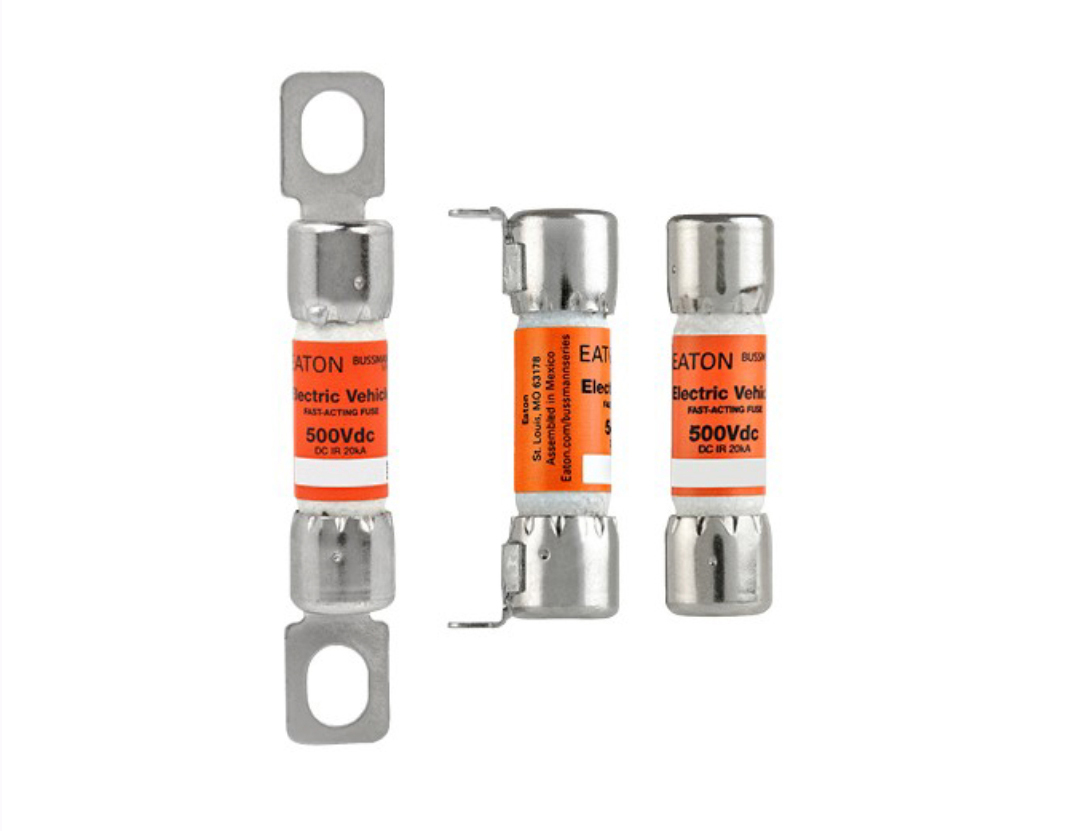

Catalog symbol:

· EV10-(amp) ferrule

· EV10-(amp)-B axial bolt-on

· EV10-(amp)-T flush bolt-on

· EV10-(amp)-1P PCB terminal

Description:

Eaton’s Bussmann series Electric Vehicle (EV) full range fuses for the® protection of auxiliary electrical systems up to 500 Vdc in ratings from 15 to 60 amps.

Specifications:

Ratings

· Volts - 500 Vdc

· Amps – 15-60 A

· Interrupting rating

· Max DC – 20 kA

· Min DC 135%

Agency information

· Designed to:

· JASO D622

· ISO 8820-8

· Manufactured under ITAF16949 quality system for compliance with automotive requirements

· RoHS compliant

· REACH declaration available upon request

Packaging

· EV10-(amp) ferrule fuses

· 10 per carton

· 500 per container

· EV10-(amp)-1P PCB fuses

· 10 per carton

· 480 per container

· EV10-(amp)-B axial bolt-on fuses

· 270 per container

· EV10-(amp)-T flush bolt-on fuses

· 270 per container

Features:

· Compact 10x38 mm size is easily mounted with multiple terminal options

· Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the needs of higher voltage battery packs

· Higher interrupting rating protects high capacity battery packs needed for vehicle acceleration and range require- ments

· Operation as low as 135% overload provides full range protection for overload and high fault current conditions

· Can be selectively coordinated with upstream battery and charging circuit fuses

Installation Suggestion:

Suggest to use screw and washer assembled. Flange screw is not recommended.

M4 screw, Tightening Torque：2+/-0.5 Nm M5 screw, Tightening Torque：4.5+/-1 Nm

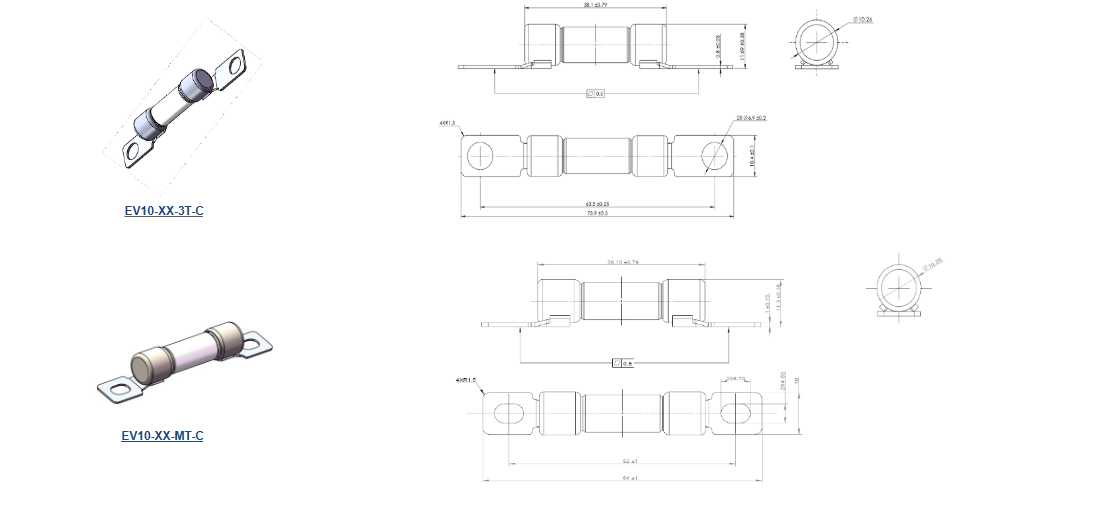

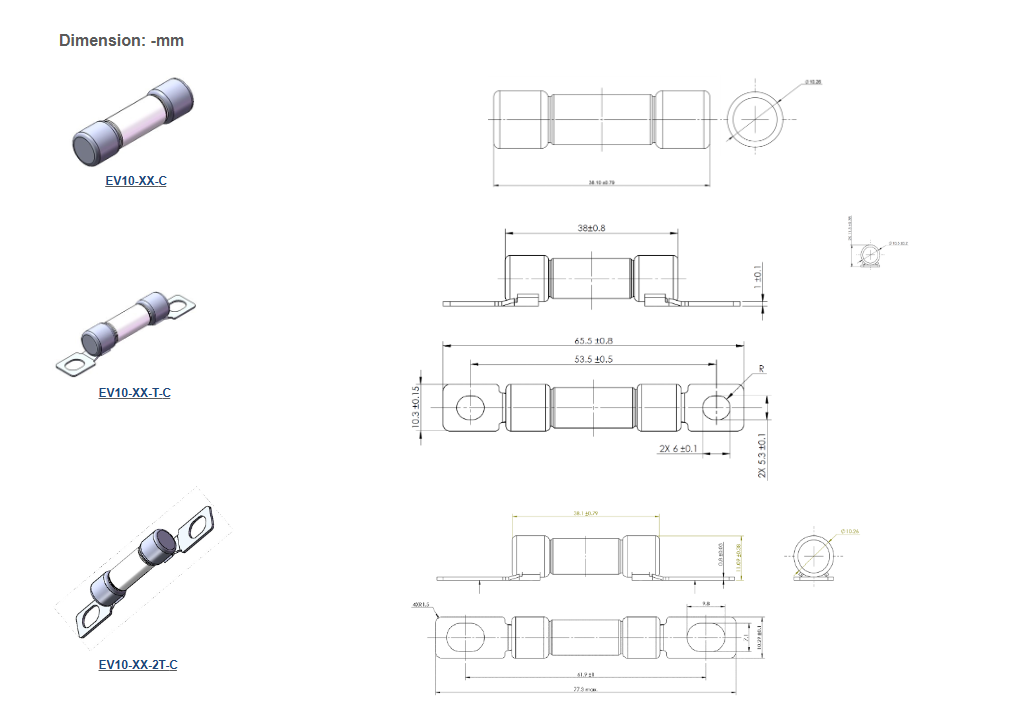

Dimension: -mm

Catalog Number List

Ferrule	-T	-2T	-3T	-MT	-B	-P	-1P
EV10-15-C *	EV10-15-T-C	EV10-15-2T-C	EV10-15-3T-C *	EV10-15-MT-C *	EV10-15-B-C	EV10-15-P-C *	EV10-15-1P-C *
EV10-20-C *	EV10-20-T-C	EV10-20-2T-C	EV10-20-3T-C *	EV10-20-MT-C *	EV10-20-B-C	EV10-20-P-C *	EV10-20-1P-C *
EV10-25-C *	EV10-25-T-C	EV10-25-2T-C	EV10-25-3T-C *	EV10-25-MT-C *	EV10-25-B-C	EV10-25-P-C *	EV10-25-1P-C *
EV10-30-C	EV10-30-T-C	EV10-30-2T-C	EV10-30-3T-C *	EV10-30-MT-C	EV10-30-B-C	EV10-30-P-C *	EV10-30-1P-C
EV10-40-C	EV10-40-T-C	EV10-40-2T-C	EV10-40-3T-C *	EV10-40-MT-C	EV10-40-B-C	EV10-40-P-C *	EV10-40-1P-C
EV10-50-C	EV10-50-T-C	EV10-50-2T-C	EV10-50-3T-C *	EV10-50-MT-C	EV10-50-B-C	EV10-50-P-C *	EV10-50-1P-C
EV10-60-C *	EV10-60-T-C	EV10-60-2T-C	EV10-60-3T-C *	EV10-60-MT-C *	EV10-60-B-C	EV10-60-P-C *	EV10-60-1P-C *

Remark: for the part with “ * ”, please check with Bussmann sales.

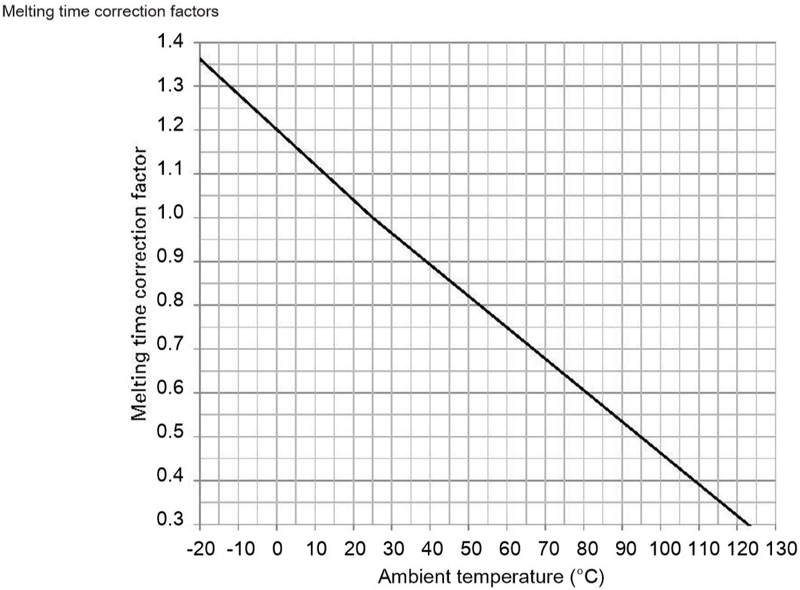

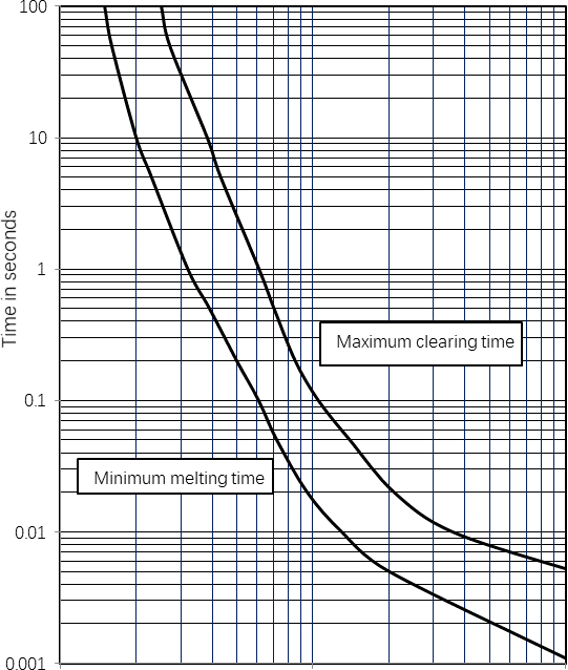

Technical Parameter

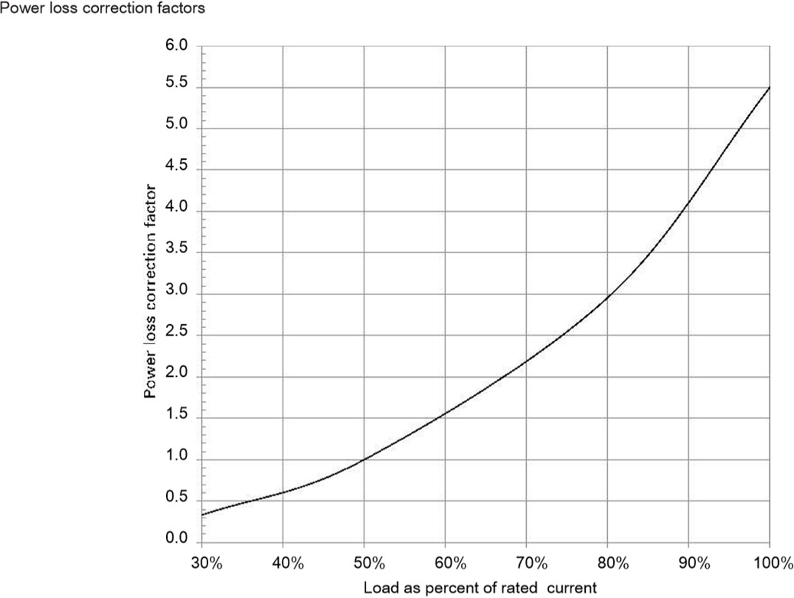

Technical data		Voltage Rating (V)	Current Rating (A)	Pre-arcing I²t (A²S)	Total I2t (A2s)	Power Loss at In (W)	Power Loss at 0.8In (W)
Interrupting rating			15	20	70	4	2
max	20KA	500Vdc	60	6,710	20,120	10	6
min	200% of In
Operating class	gR
